Hunslet Hughie

Post by **-steves-** » Sun Dec 04, 2022 3:50 pm

I have recently taken some time out to start the CAD work for a new loco, it is far from finished, indeed a long way off yet. It's a Hunslet 45mm called either Stephen or Hughie (24430 or 21970), depending on which name plate I eventually decide to give it. I know there are many that like the 2' gauge loco's (including myself) but this is one of the rarer 3' gauge Hunslet's, pretty much as it was built, well, I am trying for it to be that way. I will likely put the build up as it goes along.

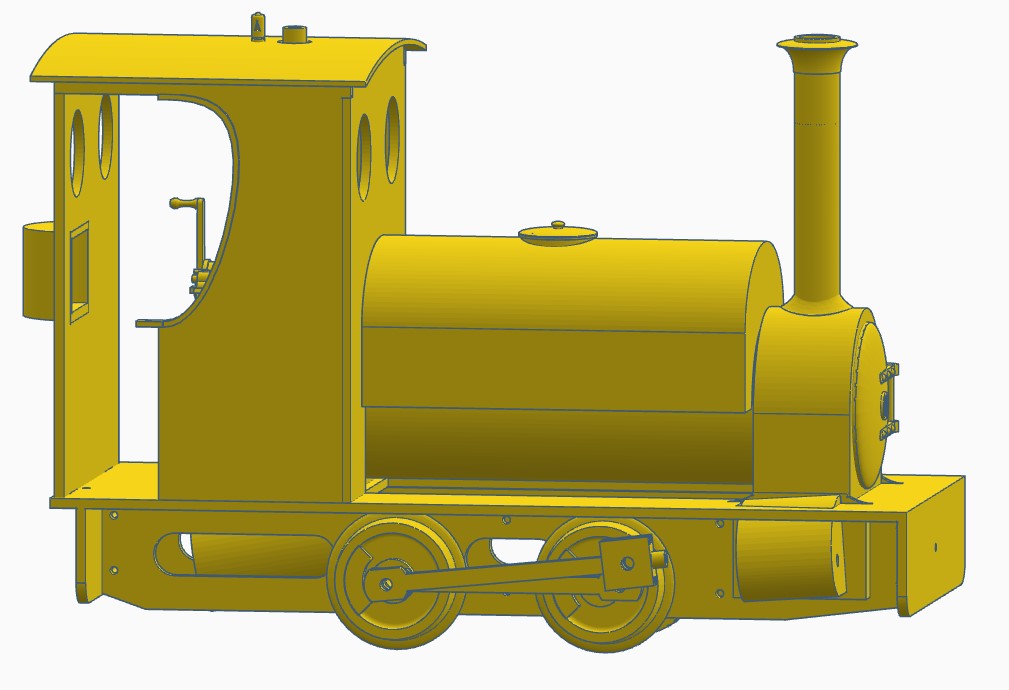

Note that in the second picture the firebox door is slightly ajar, this is because I intend to put a flickering LED inside the firebox area. And yes, the whistle is currently facing the wrong way, lol.

Post by **philipy** » Sun Dec 04, 2022 4:21 pm

Not too sure about the all-over yellow livery but looking good otherwise!

Post by **ge_rik** » Sun Dec 04, 2022 7:40 pm

Interesting that you've included the motor and gears in the drawing at this stage. I tend to figure that out later - but then I'm a self confessed bodger

Rik

Post by **philipy** » Sun Dec 04, 2022 8:57 pm

ge_rik wrote: Sun Dec 04, 2022 7:40 pm I tend to figure that out later - but then I'm a self confessed bodger

Me too, me too.

. I usually have a general idea of what I think might work, but it usually doesn't, first time around.

Phil.P · Post by **Phil.P** » Mon Dec 05, 2022 10:50 am

philipy wrote: Sun Dec 04, 2022 4:21 pm Not too sure about the all-over yellow livery but looking good otherwise!

Improved railway green, Shirley?

Phil.P

TonyW · Post by **TonyW** » Mon Dec 05, 2022 11:19 am

: HE564 BRUCKLESS 3ft.jpg (713.02 KiB) Viewed 11928 times

TonyW · Post by **TonyW** » Mon Dec 05, 2022 11:21 am

: HE754 OLDBURY-2.jpg (223.58 KiB) Viewed 11927 times

Post by **ge_rik** » Mon Dec 05, 2022 3:16 pm

I like the "shed" cab

Rik

Post by **-steves-** » Tue Dec 06, 2022 8:43 pm

A little update, I think that's the bulk of the CAD work done, just the printing and then redoing the CAD work and then repeating cycle begins.

Thanks Dave W for the pictures, very helpful

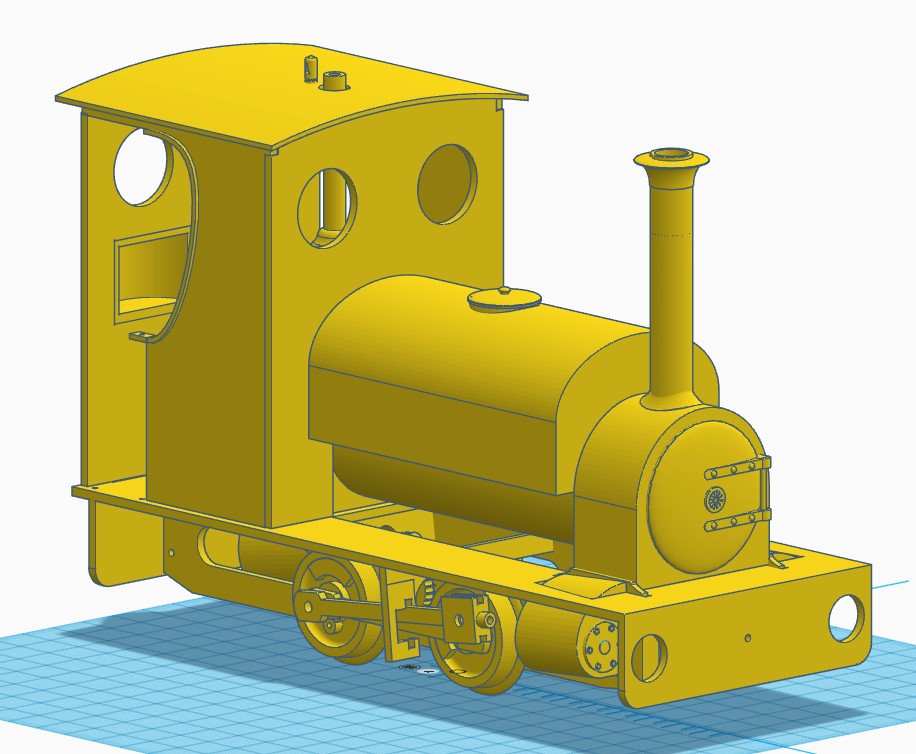

: CAD New.jpg (112.86 KiB) Viewed 11857 times

Post by **-steves-** » Sat Feb 18, 2023 12:57 pm

Sorry, it's been a bit slack on this thread.

So, a long way down the line, after many hours (weeks!) of busy busy with one thing and another, I managed to find some time in between to make progress on this.

No build shots I am afraid, but here it is, from paper, to CAD, to working model

The model is papered first instead of lots of sanding and filling. Exceptions which I forgot to do is the buffer beams

Ignore the roof fitting, this has since been changed for a new roof and different way of fitting it without using Blutack, oh, and the missing rivets etc etc etc, I am aware of all it's faults

Note that just about everything is printed in either filament or resin, except metal rails (hand rail knobs are printed) , some round metal pipework (all junctions and connectors are resin), axles, bearings and the usual parts most of us can't make like gears etc are purchased.

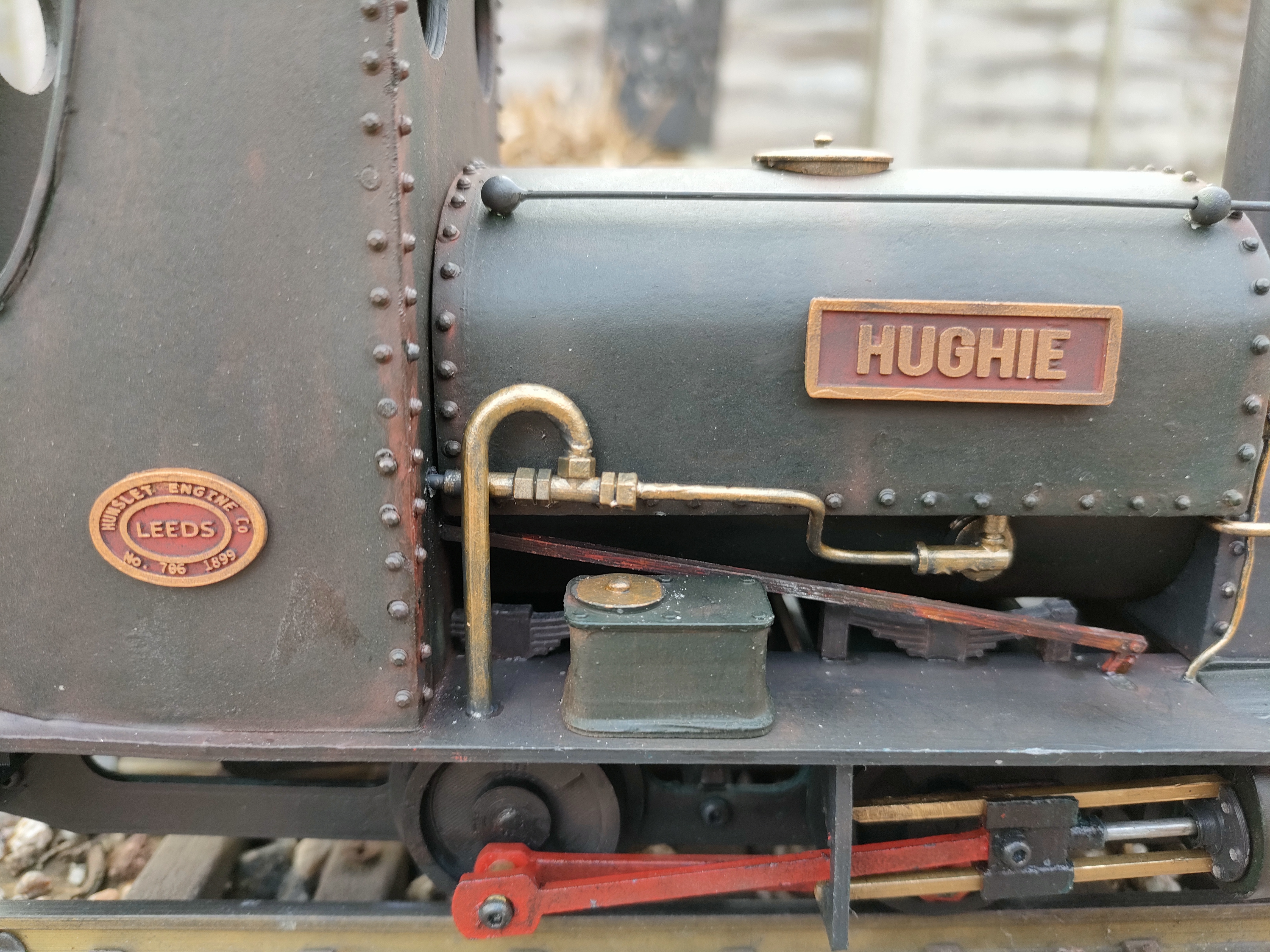

: IMG20230218094833.jpg (4.89 MiB) Viewed 11540 times

: IMG20230218094855.jpg (4.44 MiB) Viewed 11540 times

: IMG20230218094912.jpg (4.69 MiB) Viewed 11540 times

: IMG20230218094923.jpg (5.11 MiB) Viewed 11540 times

: IMG20230218094933.jpg (5.17 MiB) Viewed 11540 times

Post by **-steves-** » Sat Feb 18, 2023 1:10 pm

A quick test run, "not really made for the public" as such, more of a record that it actually worked at some point

The line was actually in need of a sweep, hence it was just up and down.

Post by **philipy** » Sat Feb 18, 2023 1:36 pm

Lovely job, Steve.

Phil.P · Post by **Phil.P** » Sat Feb 18, 2023 1:59 pm

Oooooooooh!

That's s'nice!

Is it your own motor-block and motion, as well?

Phil.P

Post by **-steves-** » Sat Feb 18, 2023 3:06 pm

Phil.P wrote: Sat Feb 18, 2023 1:59 pm Oooooooooh!

That's s'nice! :thumbleft: :thumbright:

Is it your own motor-block and motion, as well?

Phil.P

The motor is a 285 MFA motor, gears are nylon with 3mm axles. Motion is all printed and designed by me. Everything was done in Tinkercad except the flanges of the steam dome and chimney which were done in Fusion 360.

Peter Butler · Post by **Peter Butler** » Sat Feb 18, 2023 5:08 pm

That's a real beauty Steve. I love the colour and weathering, great job!

Post by **ge_rik** » Sat Feb 18, 2023 6:02 pm

Excellent! I used Hughie / Stephen to guide the detailing of my cardboard Hunslet but, of course, it's not a patch on this.

Rik

Phil.P · Post by **Phil.P** » Sat Feb 18, 2023 8:33 pm

Does that mean that we both want a kit then, Rik?

Phil.P

BertieB · Post by **BertieB** » Sat Feb 18, 2023 10:20 pm

Gosh. Beautifully done.

invicta280 · Post by **invicta280** » Sun Feb 19, 2023 2:24 pm

Top marks. What a little beauty!

Post by **ge_rik** » Sun Feb 19, 2023 6:22 pm

-steves- wrote: Sat Feb 18, 2023 3:06 pm The motor is a 285 MFA motor, gears are nylon with 3mm axles......

Hi Steve
I can find a 280 and a 385 MFA motor. Just wondered which one you used and which voltage.
I've not yet got around to seriously making my own chassis (apart from a couple with were based on LGB and Bachmann motor blocks) but I'm interested in moving in that direction

Rik
