Another crane

railwaygardener · Post by **railwaygardener** » Thu Jan 03, 2013 5:05 pm

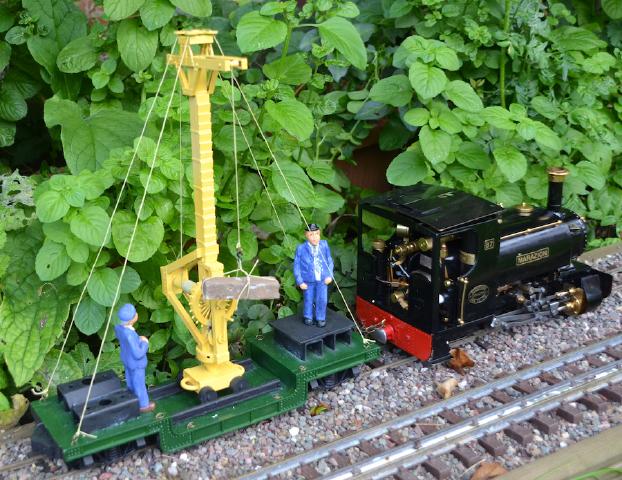

A recent inspiration/aberration, namely a US-made kit of a crane designed, apparently, by that well-known railway pioneer Leonardo da Vinci. It's on a Swift Sixteen well wagon.

[/img]

Peter Butler · Post by **Peter Butler** » Thu Jan 03, 2013 5:40 pm

Very interesting!!

The pendulum movement should take a few heads off.

I like cranes too....try this one...

railwaygardener · Post by **railwaygardener** » Thu Jan 03, 2013 6:47 pm

Excellent model, presumably scratchbuilt? Does it operate?

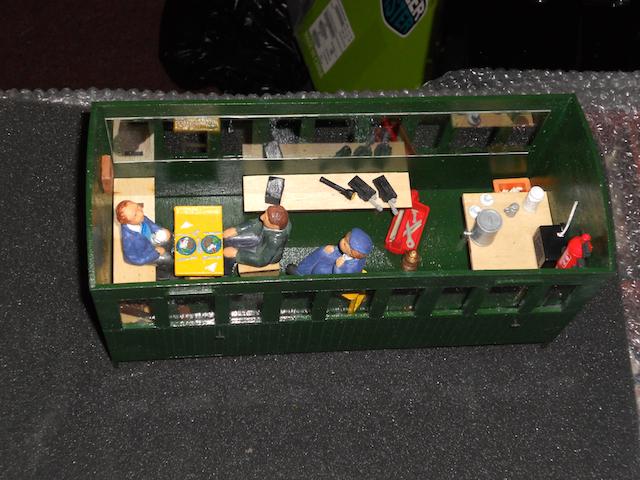

The da Vinci model is part of a crane train what I built for my portable layout 'Walmer Bridge'. It includes a Wrightscale Pechot crane, a Pretania steam winch, an engineering wagon and a support coach.

Peter Butler · Post by **Peter Butler** » Thu Jan 03, 2013 7:30 pm

My travelling crane is not built to operate, but it does rotate and rise/fall with undulating track levels. It is scratch built but uses a Airfix signal gantry or footbridge as the jib (I can't remember which now as I built it some 30 years ago!)

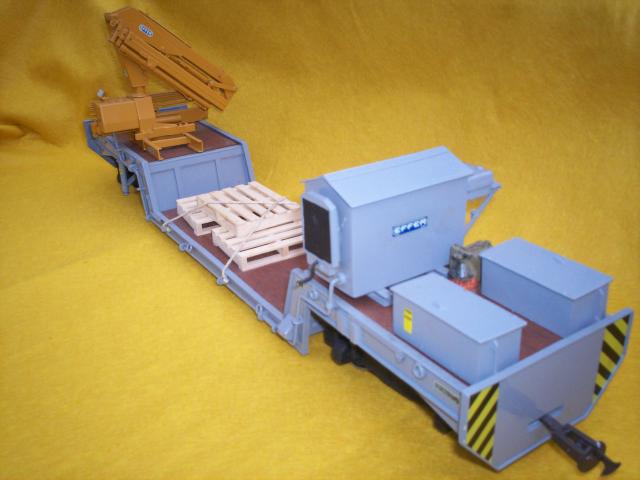

Another 'crane' I built uses a 'Italeri' HIAB kit on a scratch built well wagon. The exhibition layout it was built to run on represented a preserved line and I thought this would be the most useful piece of equipment any preservation society could aspire to.

Crackingjob · Post by **Crackingjob** » Fri Jan 04, 2013 5:51 pm

See the latest TOME from Gn15 group...its about cranes...and they have a competition

http://tome.gn15.info/

Peter Butler · Post by **Peter Butler** » Sat Jan 05, 2013 11:47 pm

Thanks for the link CJ, but GN15 is not for me!
I have so much stuff now in 16mm and Emett items too I can't get involved in another gauge. Everything I make will be 32mm gauge unless for someone else.

Crackingjob · Post by **Crackingjob** » Mon Jan 07, 2013 11:51 am

Not the gauge but the concept more so
