Locomotive nearly finished

[Tony Bird]

Hi,

I am coming towards the end of constructing a steam locomotive that uses previously built prototype parts that were made for other projects and some Meccano parts.

Take care Tony.

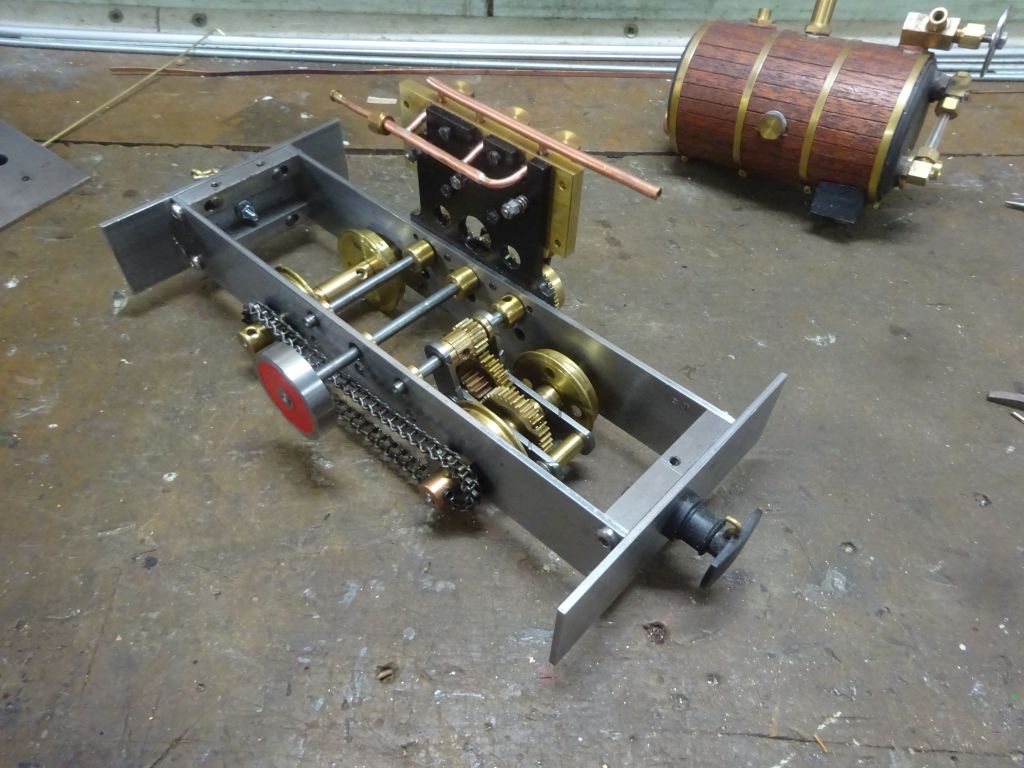

001 DSC02336 LR.jpg (156.59 KiB) Viewed 62 times

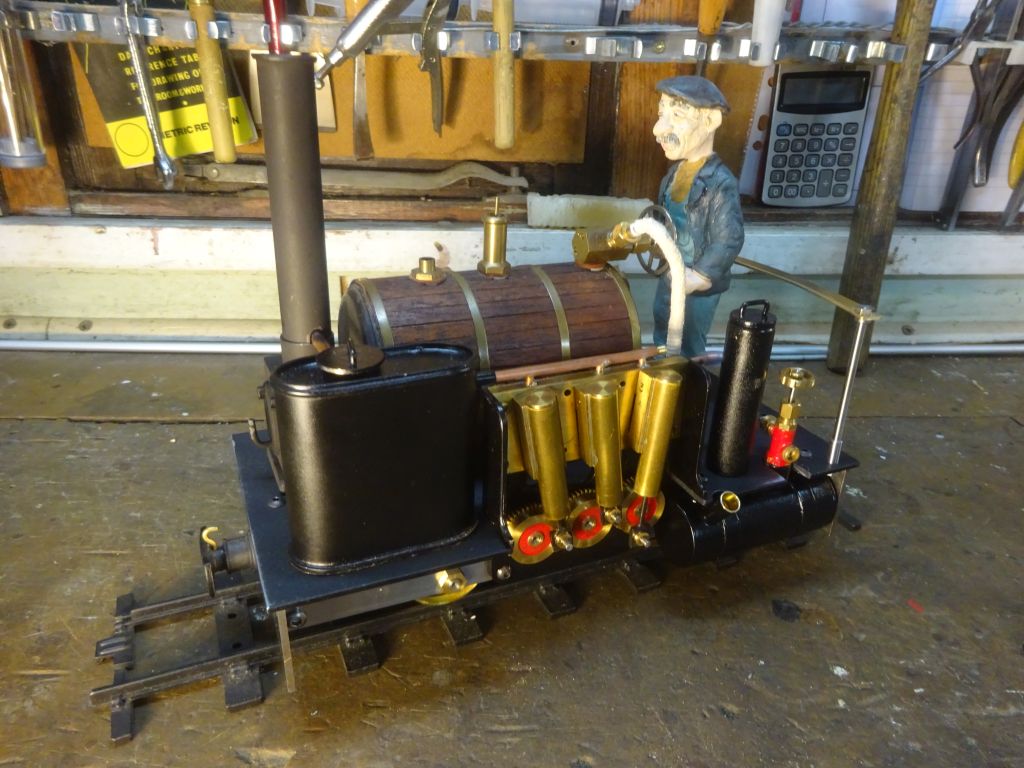

002 DSC04397 LR.jpg (165.11 KiB) Viewed 62 times

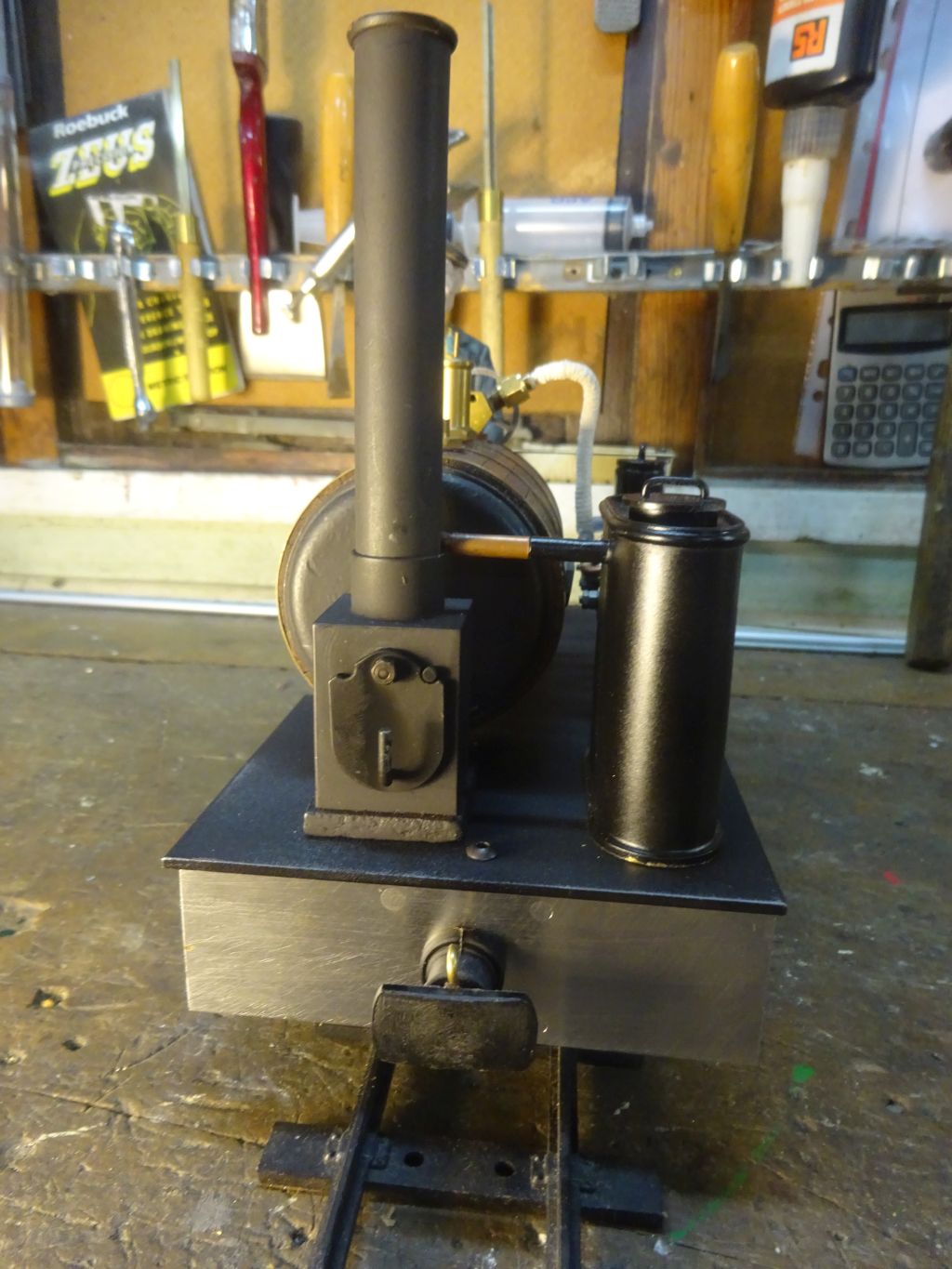

003 DSC04398 LR.jpg (201.58 KiB) Viewed 62 times

[philipy]

Thats going to look fascinating when running Tony!

[PatB]

Tony
been watching your build on FB etc, I am a bit confused about what each engine is driving. The first is the main drive shaft driving the gearbox to the front drive wheels, and a chain drive turns the rear wheels, the second drives the flywheel, is this correct? But what does the third engine drive? I can't tell from the various photos. just curious, thanks

[Tony Bird]

Hi,

The three single acting engines are set at 120 degrees to each so that the engine is self starting; their fly cranks are gear wheels that couple the engines together. The engine was a prototype marine engine which could drive via its outer engines two propeller shafts, the flywheel being between them. The engine had been 'under the bench' for years and I thought I would do something with it

Take care Tony.

[Scrat]

Hi Tony,

a fascinanting loco. with the offset boiler is that a crackShay?
;-)
