TVT - Mail/Inspection Motor

Post by GTB » Thu Oct 03, 2019 4:47 pm

This is another project that has been on the books for a long time, the data file date is 2011......... :roll:

Model Story

It seemed like a good project to make with polystyrene sheet, which I haven't used for a while, so a set of wheels were turned up early this year during a lull in track construction. Building an IP kit might have been easier, but this cost a tenth of what the kit does and can't get lost in the mail.

The model is based on the well known Tralee & Dingle railway Inspection motor, which was built on a Baguley chassis in 1922 and powered by the drive train of a 1922 Ford Model T (or maybe a Ford TT truck, the sources aren't specific). I've changed/added a few details to make it a little more Australian and it is built in 15mm/ft scale.

The model drive is the same as that fitted into the recently built gang motor, a small 6V motor with a 60:1 reduction gearbox and bevel gears on the drive axle. This time around there was space for two more batteries and the wheels are larger, so it can manage a scale speed of 25mph, about twice the speed of the gang motor. It will easily haul a small mail/luggage van if needed.

I learnt the hard way not to trust plastic for scratchbuilt chassis work many years ago when working in HO, so this model has the gearbox, chassis rails and w-irons fabricated in brass for strength and stability.

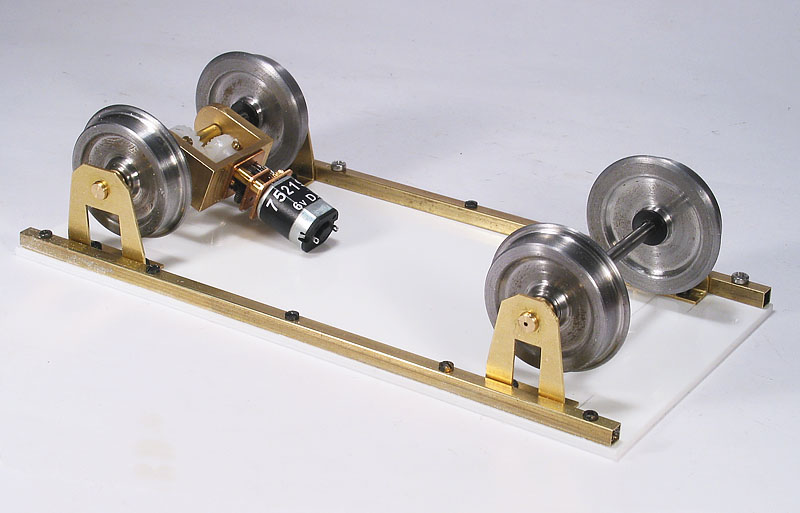

Construction started in mid-July and the first photo shows the chassis structure assembled and screwed to the floor of the model. As always, I had run out of 60 thou. and 80 thou. polystyrene sheet, so the floor was laminated from two layers of 40 thou.

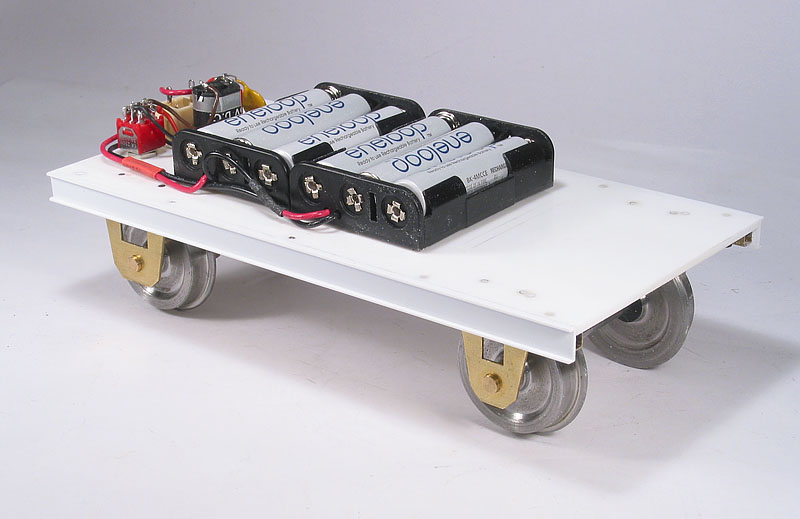

This assembly tested out OK on the bench using a HO controller, so the next step was to wire up the electric bits. The original intention was to fit it with a manual speed control, but in the event the simple on-off switch used on the gang motor was fitted. This photo shows it wired up and running, controls are from the left, reversing switch, charging socket and charge/run switch.


This was in the dead of winter, so most of it's test running was done on the hall floor, much to the ginger cat's disgust when he saw it. Even with no rails it runs quite straight, so I know the axles are installed square and parallel.

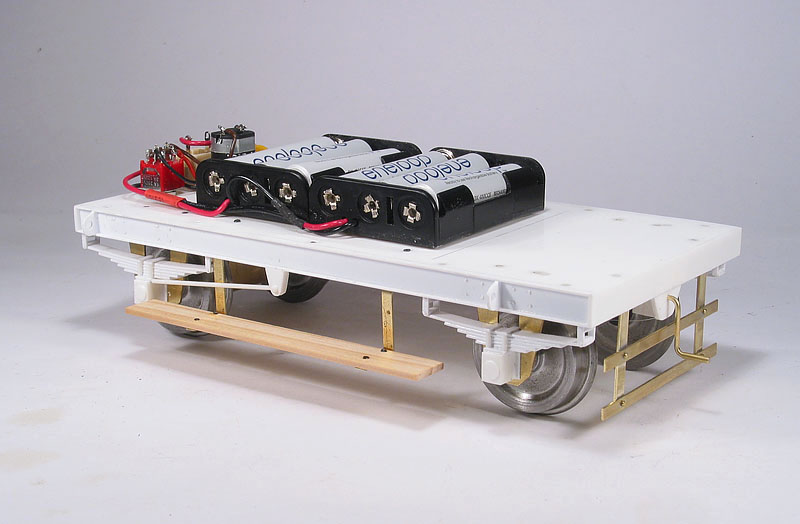

The cosmetic chassis and running gear was next on the list and this was fabricated in polystyrene, although the step supports are brass for strength. Plastic in this application wouldn't survive the first derailment, or the first hamfisted person picking it up the wrong way.

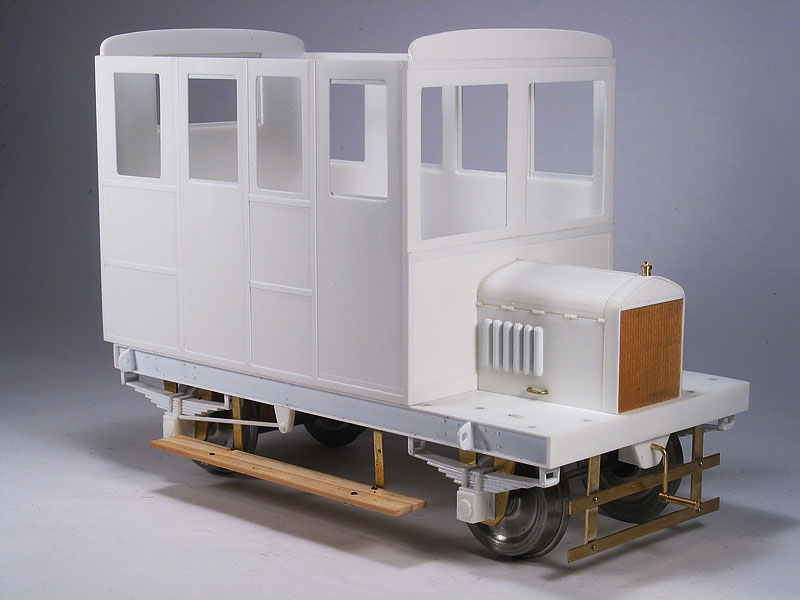

The next step was to make a start on the coach building work. The body is laminated, with an outer 20 thou. layer with the window openings and an inner layer of 40 thou. with larger openings, which form recesses for fitting the clear sheet for the windows. The radiator and engine cover were also formed by laminating sheet to form blocks that can be filed and sanded to shape. The photo shows it starting to look like a rail motor, rather than an electric skateboard...........


The engine cover was left hollow just in case I decide to fit a speed controller in the future. While I generally use MEK for building models from polystyrene sheet, the laminated parts were built up using d-Limonene as the solvent.


The interior was next, built up on a false floor fitted over the batteries. The seats were shaped from a length of wood in my usual fashion. I decided to make the seat backs pleated. After they were fitted, I found a photo of the original T&D motor and of course it was fitted with buttoned upholstery. I guess I'm lucky I'm not modelling the T&D. sigh........


The roof was the last major part to be fabricated. This was formed board by board over formers, the gaps filled with Squadron white putty and sanded to it final shape. It is held in place by a friction fit, just in case it needs to be removed. If I had glued it in place, I'd bet London to a brick that one of the windows would come loose. The photo shows the model more or less complete, although a few detail parts still need some work.

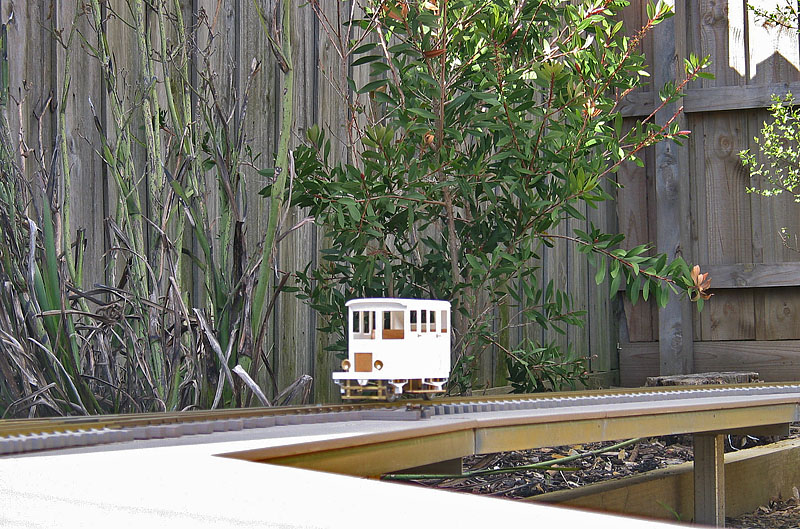

The ghost of rail motors past............. This photo shows the model doing track trials a couple of weeks ago. It's now spring and the rails are now dry, so the unpainted wheels won't go rusty after the run.


The model then sat in the paint shop queue while the little Baldwin was being painted. The colour scheme is based on that used by the VR on it's brad gauge AEC rail motors. The painting went well and the new rail motor sat for it's portrait today in the afternoon sunshine. The trailer from Motor No. 1 is standing in until I get around to building a bespoke trailer for the mail motor.


The last photo shows it with the trailer out on the track, standing in for Motor No.1 on the afternoon mail run.


TVT Story

While the TVT engineer would have liked to have his own inspection car, it wasn't going to happen, so the management committee were spun a line that the passenger motors weren't that reliable and a spare was needed to protect the mail contract. The Mail Motor spends most of it's time sitting around in the workshop, so is usually available for inspection purposes.....

The local Ford dealer had a 1922 Ford TT truck chassis that was going cheap and the Engineer had seen a photo of the T&D inspection car. So work began on a 'spare' mail motor. The paint shop foreman wanted to paint it like the VR Dodge mail motors he'd seen on a holiday, but the engineer drew the line at being seen in an all over yellow and black striped 'tiger' rail motor.


Regards,
Graeme

User avatar
philipy
Moderator
Moderator
Posts: 2818
Joined: Sun Jan 30, 2011 3:00 pm
Location: South Northants
Contact:

Re: TVT - Mail/Inspection Motor

Post by philipy » Thu Oct 03, 2019 8:43 pm

That is a really lovely build Graeme, well done indeed.

User avatar
Lonsdaler
Trainee Driver
Trainee Driver
Posts: 603
Joined: Tue May 20, 2014 9:50 am
Location: North Yorkshire

Re: TVT - Mail/Inspection Motor

Post by Lonsdaler » Thu Oct 03, 2019 9:53 pm

Looks excellent, and to your usual high standard. You've also remembered to take photos during the build process, something that I still forget to do!
Phil

Sporadic Garden Railer

User avatar
idlemarvel
Trainee Fireman
Trainee Fireman
Posts: 136
Joined: Tue May 28, 2019 1:59 pm

Re: TVT - Mail/Inspection Motor

Post by idlemarvel » Sat Oct 05, 2019 5:38 pm

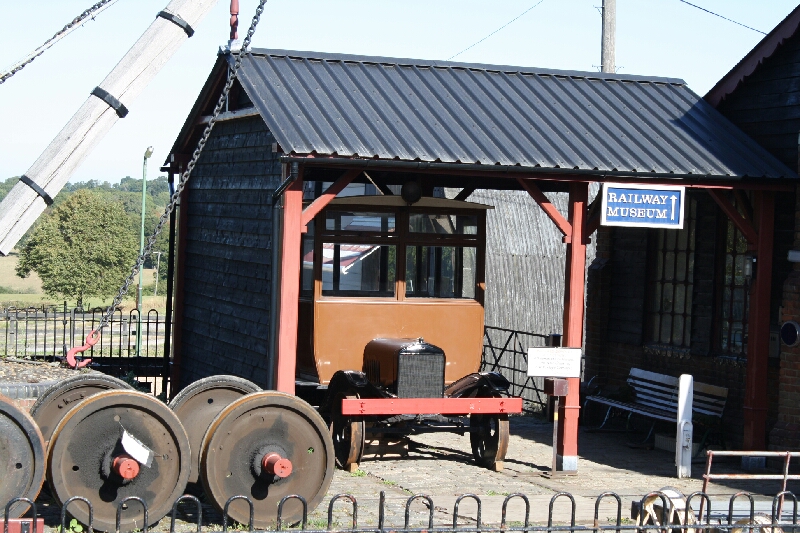

Here's a similar prototype from the Kent and East Sussex Railway.
Dave Miller
currently building the 5" gauge Circle Line

User avatar
GTB
Driver
Driver
Posts: 1229
Joined: Sat Mar 05, 2011 2:46 pm
Location: Australia

Re: TVT - Mail/Inspection Motor

Post by GTB » Tue Oct 08, 2019 1:29 pm

Lonsdaler wrote:
Thu Oct 03, 2019 9:53 pm
You've also remembered to take photos during the build process, something that I still forget to do!

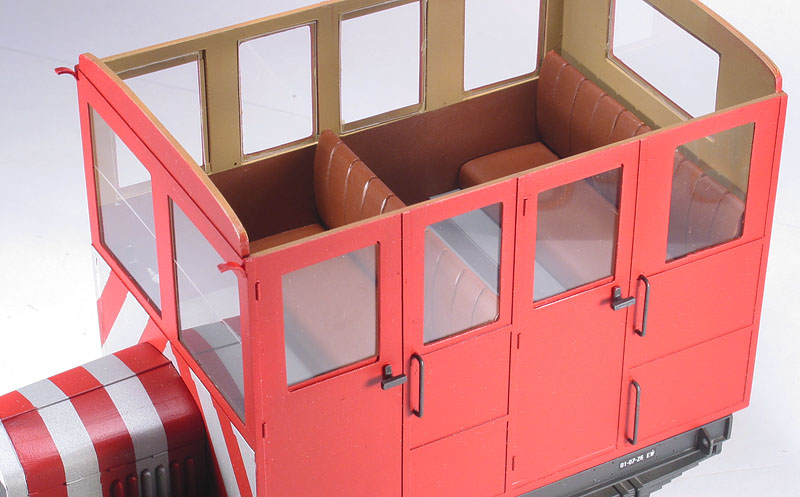

Which reminded me I forgot to take a photo of the interior as I was building it.

The Model T Ford has an idiosyncratic set of controls compared to modern cars, so I tried to simulate that. I didn't fit the three pedals though, as the false floor is too high. These pics show the interior now, after painting.



Regards,
Graeme

User avatar
Mitch stack
Trainee Fireman
Trainee Fireman
Posts: 209
Joined: Tue Sep 05, 2017 9:43 am
Location: Australia

Re: TVT - Mail/Inspection Motor

Post by Mitch stack » Wed Oct 09, 2019 8:26 am

Nice work Graeme, is this R/C or Manually Controlled?
Mitch

User avatar
GTB
Driver
Driver
Posts: 1229
Joined: Sat Mar 05, 2011 2:46 pm
Location: Australia

Re: TVT - Mail/Inspection Motor

Post by GTB » Fri Oct 11, 2019 3:38 am

Mitch stack wrote:
Wed Oct 09, 2019 8:26 am
Nice work Graeme, is this R/C or Manually Controlled?
Mitch
Manual control, just a simple on/off switch and a reversing switch. There's space for a Deltang Rx/ESC, but not worth the cost for something that will run very rarely.

Graeme

User avatar
Andrew
Moderator
Moderator
Posts: 2214
Joined: Tue Jul 03, 2012 1:33 pm
Location: Bristol, UK
Contact:

Re: TVT - Mail/Inspection Motor

Post by Andrew » Fri Oct 11, 2019 8:28 am

It looks great - and so neat I thought I was looking at CAD sketches at first rather than an actual model!

Cheers,

Andrew.

User avatar
GTB
Driver
Driver
Posts: 1229
Joined: Sat Mar 05, 2011 2:46 pm
Location: Australia

Re: TVT - Mail/Inspection Motor

Post by GTB » Sat Dec 26, 2020 5:27 am

It's been a while, but I finally got around to finishing this model by building the trailer for it. One more project off the list.

The VR narrow gauge postal motors and their trailers were modified gang motors of the sort used by the Way & Works Dept. and the new trailer has been based on one used by the VR on the Whitfield line. The mail bags rode in the motor with the driver, the trailer was only used for larger rail parcels, light goods, etc.

Construction is straightforward and probably the nearest thing to a Welsh slate wagon as you would find here in Victoria. The wheels, running gear and couplings are machined from metal, the underframe is solid wood and ply sawn to size on the little bench saw and the bodywork is built up from polystyrene strip.

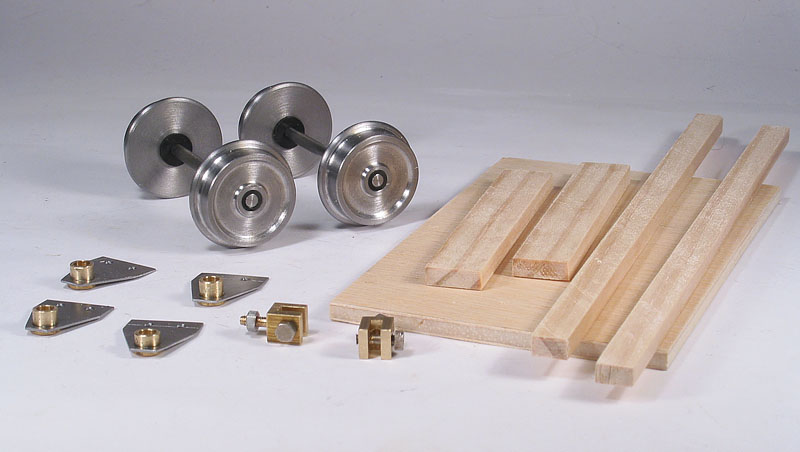

First pic shows the underframe and running gear parts machined and ready for assembly. About 90% of the weight of the model is in the wheels, so low down for good stability. Not that the mail motor is all that fast........

postal trailer-1.jpg

Next photo shows the underframe and running gear assembled and ready for a test run on the track.

postal trailer-2.jpg

The last construction photo shows the bodywork, such as it is, fitted and complete.

postal trailer-3.jpg

The last two photos show the mail motor and trailer released for traffic and ready for a run on a dreary day a couple of days ago. Today it's a nice warm 26degC and not a cloud in the sky........ ;)

postal trailer-4.jpg
postal trailer-5.jpg

This one falls into the quick and cheap category, about 10 hours work and about A$5 worth of materials.

Regards,
Graeme

User avatar
Peter Butler
Driver
Driver
Posts: 4084
Joined: Sun Sep 09, 2012 10:33 pm
Location: West Wales

Re: TVT - Mail/Inspection Motor

Post by Peter Butler » Sat Dec 26, 2020 11:07 am

A little beauty Graeme and all of the highest quality.
The best things in life are free.... so why am I doing this?

User avatar
FWLR
Driver
Driver
Posts: 3324
Joined: Sat Aug 05, 2017 9:45 am
Location: Preston, Lancashire, UK

Re: TVT - Mail/Inspection Motor

Post by FWLR » Sat Dec 26, 2020 1:40 pm

Very Very nice model this.
An excellent build which looks even better than one bought commercially from one of the major kit suppliers.
Rod

Life is so easy when I run my trains. :thumbright:

🚂🚃🚃🚃🚃🚃🚃🚃🚃🚃

https://gardenrails.org/forum/viewtopic ... 41&t=11364

User avatar
ge_rik
Administrator
Administrator
Posts: 3981
Joined: Sun Oct 25, 2009 10:20 pm
Location: Cheshire
Contact:

Re: TVT - Mail/Inspection Motor

Post by ge_rik » Sat Dec 26, 2020 2:53 pm

My daughter bought me a book about the Tralee & Dingle for Christmas. I was only looking at photos of their inspection car last night and thinking it would make a great model ...... and it certainly does, in your hands! 👍

Rik
------------------------
Peckforton Light Railway - Blog Facebook Youtube

User avatar
gregh
Fireman
Fireman
Posts: 362
Joined: Sun Apr 01, 2018 5:44 am
Location: Sydney, Australia
Contact:

Re: TVT - Mail/Inspection Motor

Post by gregh » Sun Dec 27, 2020 10:47 pm

That's a great looking machine. Very crisp painting of stripes sets it off.
I'll pinch your idea of making the seats in one length - good one!
Greg from downunder.
The Sandstone & Termite's website: http://www.members.optusnet.com.au/satr/satr.htm

User avatar
GTB
Driver
Driver
Posts: 1229
Joined: Sat Mar 05, 2011 2:46 pm
Location: Australia

Re: TVT - Mail/Inspection Motor

Post by GTB » Mon Dec 28, 2020 10:57 am

ge_rik wrote:
Sat Dec 26, 2020 2:53 pm
My daughter bought me a book about the Tralee & Dingle for Christmas.
Which T&D book did you receive? There are three, all out of print. 'The Dingle Train' by Rowlands et al. being the most recent and the best in my humble opinion.

I have had a soft spot for the Irish ng for a long time (possibly something to do with Irish ancestry) and the T&D inspection car has been on the to do list since I started out in garden scale.

Regards,
Graeme

User avatar
ge_rik
Administrator
Administrator
Posts: 3981
Joined: Sun Oct 25, 2009 10:20 pm
Location: Cheshire
Contact:

Re: TVT - Mail/Inspection Motor

Post by ge_rik » Mon Dec 28, 2020 11:07 am

GTB wrote:
Mon Dec 28, 2020 10:57 am
Which T&D book did you receive? There are three, all out of print. 'The Dingle Train' by Rowlands et al. being the most recent and the best in my humble opinion.
A different Rowlands book simply called The Tralee & Dingle Railway. It's got some drawings (including the inspection car) by David Pinniger.

My daughter and her husband live in Ireland and the Dingle peninsula is their favourite holiday destination. She tried to find a copy in bookshops while she was there last summer but in the end had to buy online.
