3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:26 pm
by ge_rik
My latest effort ....

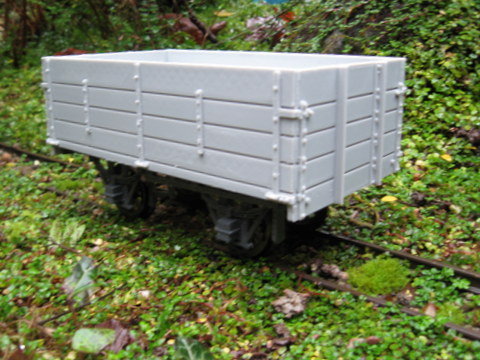

- IMG_1304.JPG (75.91 KiB) Viewed 7306 times
- IMG_1305.JPG (73.53 KiB) Viewed 7306 times
Drawn in TinkerCAD, yet to be painted ...
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:33 pm
by -steves-
Very nice Rik, have you designed the entire wagon including base, axle carriers, wheels etc, or is it the top part to go on a ready made base?
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:42 pm
by ge_rik
-steves- wrote: Sun Dec 13, 2020 12:33 pm
Very nice Rik, have you designed the entire wagon including base, axle carriers, wheels etc, or is it the top part to go on a ready made base?
The whole wagon - apart from the wheels. I've used plasticard for the floor of the wagon but a ready-planked rectangle could easilyhave been drawn.
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:51 pm
by -steves-
ge_rik wrote: Sun Dec 13, 2020 12:42 pm
-steves- wrote: Sun Dec 13, 2020 12:33 pm
Very nice Rik, have you designed the entire wagon including base, axle carriers, wheels etc, or is it the top part to go on a ready made base?
The whole wagon - apart from the wheels. I've used plasticard for the floor of the wagon but a ready-planked rectangle could easilyhave been drawn.
Rik
Very nice, I am yet again impressed. With a load in the wagon it won't matter what is at the bottom and cutting a bit of plasticard is way faster and cheaper to do, great idea
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:51 pm
by ge_rik
Here are the parts straight off the printers - the light grey parts are off the Eryone Thinker SE and the dark grey parts are off the cheapo Anet A8 clone. I use brims on both printers to help with adhesion.
- IMG_1294-001.JPG (44.59 KiB) Viewed 7300 times
.
- IMG_1296-001.JPG (25.59 KiB) Viewed 7300 times
.
- IMG_1297-001.JPG (31.56 KiB) Viewed 7300 times
.
- IMG_1299-001.JPG (32.74 KiB) Viewed 7300 times
.
- IMG_1300-001.JPG (36.88 KiB) Viewed 7300 times
.
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 12:55 pm
by ge_rik
Looks better in TinkerCAD
- solebar TinkerCAD.jpg (25.32 KiB) Viewed 7299 times
.
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 1:00 pm
by philipy
ge_rik wrote: Sun Dec 13, 2020 12:55 pm
Looks better in TinkerCAD
Yeah, they always look better from the drawings than the printed reality!
Nevertheless, the prints do look very good.
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 1:11 pm
by ge_rik
-steves- wrote: Sun Dec 13, 2020 12:51 pm
With a load in the wagon it won't matter what is at the bottom and cutting a bit of plasticard is way faster and cheaper to do, great idea
The floor and the inside sides are planked as well ...
- IMG_1308.JPG (41.07 KiB) Viewed 7294 times
.
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Dec 13, 2020 10:49 pm
by ge_rik
I've added a file for the floor to the set of .STL files in the new 3D download section so anyone wanting to print the wagon has the option of printing it or using a piece of plasticard.
- floor TinkerCAD.jpg (38.13 KiB) Viewed 7272 times
.
Rik
Re: 3D printed Southwold Open wagon
Posted: Sun Jan 10, 2021 11:10 am
by FWLR
Hi Rik,
My memory has lapsed again. Did you do a thread on how you did your wagon sides in TinkerCad. I seem to remember someone doing it. It showed how to copy and paste, plus round off ends and put hinges on too. I can't seem to find it now.
I thought I had bookmarked it
Re: 3D printed Southwold Open wagon
Posted: Sun Jan 10, 2021 12:01 pm
by Palmerston
Can be found on his Blog!
Re: 3D printed Southwold Open wagon
Posted: Sun Jan 10, 2021 1:01 pm
by ge_rik
I'll start a new thread devoted to TinkerCAD tips. I'm sure plenty of others will find nifty ways of doing things they can share.
EDIT Now done ......
https://gardenrails.org/forum/viewtopic ... 01#p159701
