Imperial Hotel - a Queenslander pub

A place for discussing garden railway scenery, such as buildings, trees, etc....
User avatar
ge_rik
Administrator
Administrator
Posts: 4259
Joined: Sun Oct 25, 2009 10:20 pm
Location: Cheshire
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by ge_rik » Sat Jan 09, 2021 8:18 am

Well, for someone who says he doesn't like doing interiors, the inside of your hotel is just as impressive as the outside.

Wonderful!!


Rik
------------------------
Peckforton Light Railway - Blog Facebook Youtube

User avatar
Peter Butler
Driver
Driver
Posts: 4228
Joined: Sun Sep 09, 2012 10:33 pm
Location: West Wales

Re: Imperial Hotel - a Queenslander pub

Post by Peter Butler » Sat Jan 09, 2021 11:18 am

Magnificent.
The best things in life are free.... so why am I doing this?

User avatar
FWLR
Driver
Driver
Posts: 3360
Joined: Sat Aug 05, 2017 9:45 am
Location: Preston, Lancashire, UK

Re: Imperial Hotel - a Queenslander pub

Post by FWLR » Sun Jan 10, 2021 8:46 am

This thread was a joy to read. :notworthy: It has brought back so many memories on my own builds and mostly what I do with them.

A truly superb building and some very well detailed photos.... :coolphotos
Rod

Life is so easy when I run my trains. :thumbright:

πŸš‚πŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒ

https://gardenrails.org/forum/viewtopic ... 41&t=11364

User avatar
RobRossington
Trainee Fireman
Trainee Fireman
Posts: 165
Joined: Sun Jan 30, 2011 9:57 pm
Location: Liverpool

Re: Imperial Hotel - a Queenslander pub

Post by RobRossington » Tue Jan 12, 2021 3:30 pm

Oh Most excellent!

User avatar
Lonsdaler
Trainee Driver
Trainee Driver
Posts: 656
Joined: Tue May 20, 2014 9:50 am
Location: North Yorkshire

Re: Imperial Hotel - a Queenslander pub

Post by Lonsdaler » Mon Mar 22, 2021 6:26 pm

Just catching up Aaron - what a wonderful build :thumbright:
I note that you have fallen into the same trap that I fall foul of - plan what you want to do and then get lost in the embellishment :lol: but my word that interior is marvellous - what a surprise for those who decide to peek through the windows.
i felt your pain when cutting the 45 degree mitres - a brilliant tool which I have from when I framed my own photographs is a mat cutter - it is meant for photo frame board, but works well on foamboard up to about 5mm thick.
Like everyone else, I can't wait to see the finished result in situ :notworthy:
Phil

Sporadic Garden Railer

User avatar
Old Man Aaron
Trainee Fireman
Trainee Fireman
Posts: 242
Joined: Wed Oct 19, 2016 11:08 am
Location: Sunshine Coast QLD, Australia
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by Old Man Aaron » Wed Mar 24, 2021 9:07 am

Thanks again, guys, means a lot. :)

Unfortunately once in-situ, one would need one of those mirrors on a stick, the type used for looking under cars at borders, to see inside. Hopefully things will be better on the next tramway; I could mount the pub on a raised garden bed for better access and viewing.

That bevel cutter is a great idea, should look into getting one. :) I should also stop procrastinating the fascia lettering and get this pub finished - It's now been two years and three days since starting this build, much too long.. Besides, I.N. Spectre will need somewhere to stay when he arrives.. Please do take your time with him; In case you've not already figured, I've been dreading the lettering job since day one, and there's a number of other jobs yet to do.. :roll:
Anzac Creek Workshops blog - HO, 16mm & 2ft endeavors.

User avatar
philipy
Moderator
Moderator
Posts: 3105
Joined: Sun Jan 30, 2011 3:00 pm
Location: South Northants
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by philipy » Wed Mar 24, 2021 9:30 am

Funnily enough it occurred to me yesterday that the Hotel would be suitable accomodation for the inspector when he gets to you!

For those who haven't cottoned-on, arrangements are being made for Mr I.N Spectre to pack his bags and get on a flight to the land of Oz, starting in Anzac Creek. Having gone all that way, he would very much like to do his thing at various other Antipodean railways, so if those members would like to drop me a PM we'll put them on the list.

User avatar
Lonsdaler
Trainee Driver
Trainee Driver
Posts: 656
Joined: Tue May 20, 2014 9:50 am
Location: North Yorkshire

Re: Imperial Hotel - a Queenslander pub

Post by Lonsdaler » Wed Mar 24, 2021 1:04 pm

philipy wrote: ↑
Wed Mar 24, 2021 9:30 am
Funnily enough it occurred to me yesterday that the Hotel would be suitable accomodation for the inspector when he gets to you!

For those who haven't cottoned-on, arrangements are being made for Mr I.N Spectre to pack his bags and get on a flight to the land of Oz, starting in Anzac Creek. Having gone all that way, he would very much like to do his thing at various other Antipodean railways, so if those members would like to drop me a PM we'll put them on the list.
Jolly good. Glad someone has expressed a wish to be 'visited'! :lol: I feel I must take some blame for the loss of interest, he's been with me since September, and only just started his inspection. Of course, as far as he's concerned, he only took a 2 week break :lol:
Phil

Sporadic Garden Railer

User avatar
GAP
Trainee Fireman
Trainee Fireman
Posts: 221
Joined: Sun Dec 23, 2012 10:34 pm
Location: Bundaberg QLD Australia
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by GAP » Thu Apr 08, 2021 10:36 pm

Wonderful job there, Aaron it captures the essence of a Queensland pub perfectly.

Quick question where did you get the PVC foamboard?

Also a tip for conduit for wiring.
I use irrigation piping as my conduit it is;
Cheaper than electrical conduit
Readily available
Comes in 2 sizes 12mm and 19mm
Has a large range if fittings
Does not require glue to seal it
It is Waterproof
And can be buried in the ground without an issue.

For my galvanised cladding I used Liquid Nails "Landscape" mainly because it is formulated for outdoor use but also it is relatively cheap.
Graeme from the home of the Ringbalin Light Railway
https://ringbalin-light-railway.blogspo ... -page.html

User avatar
Old Man Aaron
Trainee Fireman
Trainee Fireman
Posts: 242
Joined: Wed Oct 19, 2016 11:08 am
Location: Sunshine Coast QLD, Australia
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by Old Man Aaron » Fri Apr 09, 2021 3:53 am

Cheers Graeme; Irrigation line sounds the way to go, then. I've been getting my foamboard from the evil green hadware shed. My local one used to sell 3ft x 4ft sheets. kept it with the MDF and corflute, but stopped carrying it. Ended up finding more foamboard from the polycarb sheeting section, of all places. It's still white 3mm foambaoard, but it's noticeably harder to cut and carve. Unlike the old stuff that I used in this pub, it has a slight "grain"to it's surface, which can result in the surface layer of PVC tearing slightly, if carved against the grain with too much pressure. Worse still, the sheets are only 2ft by 4ft, and about 50% dearer by sq ft! And good luck trying to find it on their website.. It's certainly usable though, having made a bank and now mill traffic office with it, and plans for more yet.. Still have 1Β½ sheets left, but when I need more, I'm going to a plastics wholesaler; they're all over the place. They supply 4x8 sheets, and multiple thicknesses. Probably cheaper, too.. I know that was a bit long-winded. :roll:


29/03/21

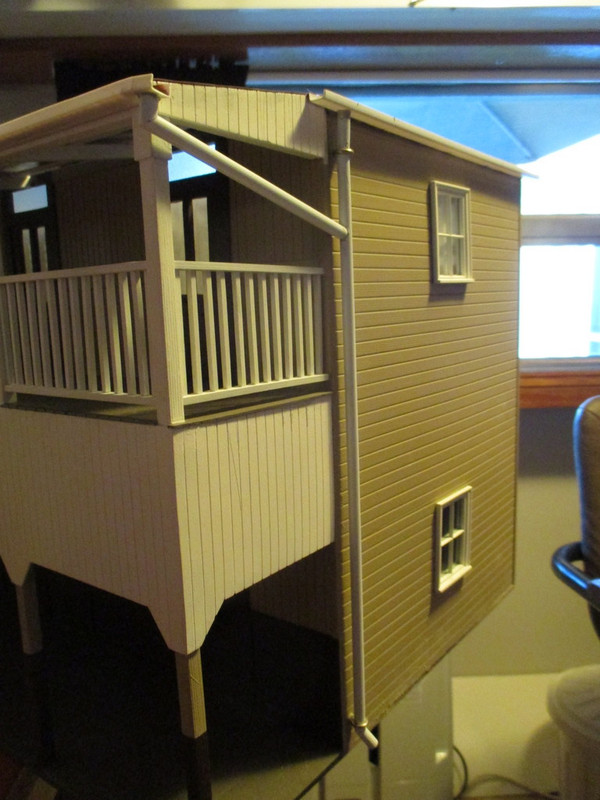

With "Victoria" overhauled and awaiting testing, the bench was clear for the pub to re-occupy it. The downpipes (non-funcional, they'd just clog) had been made some months ago, and could now be fitted using screw eye-hooks for picture hanging, as "good enough" mounting brackets. Holes were pilot drilled for them and Sikaflex applied to the "threads" before screwing them in. After fitting the downpipes, the brackets were etch-primed.

02/04/21
After more practice by lettering the aforementioned bank, it was time to bite the bullet and letter the fascia. I don't have the skill to hand-draw my templates, so these were made in the computer, reversed, and printed out some months ago. A hard charcoal pencil (with frequent stops for sharpening) is then carefully used to outline the letters.

The outlined templates were then carefully positioned on the fascia, taking my time to ensure they were correctly located. With that, one could see the letters' edges through the paper; these edges need to be rubbed with something, to transfer the charcoal pencil outlining to the fascia surface. I find a cheap ballpoint pen is best, as the ball rolls over the paper without tearing it, and the ink lubricates the ball and shows clearly where you've already been over, without soaking through the paper. Carefully flipping up the paper reveals where the charcoal didn't properly transfer, so you could either run the pen over the paper again, or touch up the surface directly with the pencil.

03/04/21
With the guide lines in place, it was time for the scary bit - which as you may have gathered by now, isn't nearly as bad as I thought it would be. :roll:
In the past, I've used with little success, regular brushes and enamel paint. But using proper signwriting brushes and lettering enamel makes all the difference. The home-made mahl stick provides support for your painting hand, and is a huge help for both accuracy, and keeping your hand from smudging the lines or fresh paint.

Because lettering enamel has so much pigment in it, it usually covers in a single coat. Which is good, because if you have to re-coat the edges; that's where mistakes creep in, because we're human and our hands are rarely able to perfectly repeat earlier brush strokes. So you end up having to wipe off and re-try these areas, over and over again until you get it right. Of course this issue reduces with experience, but using paint that covers in the first coat really cuts out most of this problem. There are still spots that need a second coat, but with letters this size at least, these are rarely the edges due to the way the paint flows, leaving a slightly thicker and thus better-covering coat around the edges of your letters.

This is just my experience anyway. If you've a knack for accurately brush-painting models, you may also have a knack for signwriting, because most of that skill transfers over.
The paint was a bit gloopy and thick on the brush here; it's hard to paint and balance and camera on your knee at once.

After the second coat, that was the red done. It's not quite perfect, but the shading/outlining is yet to come and will hide that. Will give it another week to cure, then start the black shading..
Anzac Creek Workshops blog - HO, 16mm & 2ft endeavors.

User avatar
GAP
Trainee Fireman
Trainee Fireman
Posts: 221
Joined: Sun Dec 23, 2012 10:34 pm
Location: Bundaberg QLD Australia
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by GAP » Fri Apr 09, 2021 8:52 am

Old Man Aaron wrote: ↑
Fri Apr 09, 2021 3:53 am
Cheers Graeme; Irrigation line sounds the way to go, then. I've been getting my foamboard from the evil green hadware shed. My local one used to sell 3ft x 4ft sheets. kept it with the MDF and corflute, but stopped carrying it. Ended up finding more foamboard from the polycarb sheeting section, of all places. It's still white 3mm foambaoard, but it's noticeably harder to cut and carve. Unlike the old stuff that I used in this pub, it has a slight "grain"to it's surface, which can result in the surface layer of PVC tearing slightly, if carved against the grain with too much pressure. Worse still, the sheets are only 2ft by 4ft, and about 50% dearer by sq ft! And good luck trying to find it on their website.. It's certainly usable though, having made a bank and now mill traffic office with it, and plans for more yet.. Still have 1Β½ sheets left, but when I need more, I'm going to a plastics wholesaler; they're all over the place. They supply 4x8 sheets, and multiple thicknesses. Probably cheaper, too.. I know that was a bit long-winded. :roll:

Thanks Aaron.
I have glanced at that stuff in the green shed will look closer next time or looks like I'll have to find a plastics wholesale near me.
Graeme from the home of the Ringbalin Light Railway
https://ringbalin-light-railway.blogspo ... -page.html

User avatar
Lonsdaler
Trainee Driver
Trainee Driver
Posts: 656
Joined: Tue May 20, 2014 9:50 am
Location: North Yorkshire

Re: Imperial Hotel - a Queenslander pub

Post by Lonsdaler » Fri Apr 09, 2021 12:41 pm

Looking good Aaron. I'm in awe of your patience doing the lettering by hand, and using picture hanger eyes as drain pipe brackets - what a great idea! That's something I always struggle with. Thanks for the tip :thumbup:
Phil

Sporadic Garden Railer

User avatar
Peter Butler
Driver
Driver
Posts: 4228
Joined: Sun Sep 09, 2012 10:33 pm
Location: West Wales

Re: Imperial Hotel - a Queenslander pub

Post by Peter Butler » Fri Apr 09, 2021 2:22 pm

I have tracked down some pictures of down-pipes I fitted to my structures back in 2016 (mentioned on my Time to build a railway thread) where I described using picture screw-eyes with the addition of a small collar of plastic tube either side. This helps to make the 'bracket' more realistic.....
The best things in life are free.... so why am I doing this?

User avatar
FWLR
Driver
Driver
Posts: 3360
Joined: Sat Aug 05, 2017 9:45 am
Location: Preston, Lancashire, UK

Re: Imperial Hotel - a Queenslander pub

Post by FWLR » Sat Apr 10, 2021 7:01 am

Brilliant idea.
Rod

Life is so easy when I run my trains. :thumbright:

πŸš‚πŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒπŸšƒ

https://gardenrails.org/forum/viewtopic ... 41&t=11364

User avatar
ge_rik
Administrator
Administrator
Posts: 4259
Joined: Sun Oct 25, 2009 10:20 pm
Location: Cheshire
Contact:

Re: Imperial Hotel - a Queenslander pub

Post by ge_rik » Sat Apr 10, 2021 7:33 am

Clever!

Rik
------------------------
Peckforton Light Railway - Blog Facebook Youtube
