Greendale Rocket modification.

[Tony Bird]

Hi.

A week or so ago while in the B&M discount store I came across a 'Postman Pat' Greendale Rocket. After consultation with SWMO it was decided to buy a ‘Greendale Rocket’ along with some ‘Postman Pat’ figures.

Photos 1&2.




I have modified many plastic toys to run on model railway tracks but never one with trucks, all of the models so far modified have had a fixed wheel base so a 4-2-2 ‘Atlantic’ would be a challenge! I don’t know of any narrow gauge ‘Atlantics’ with inside cylinders, I sure someone will tell me if there is! The rolling stock was first to be modified starting with the carriage.

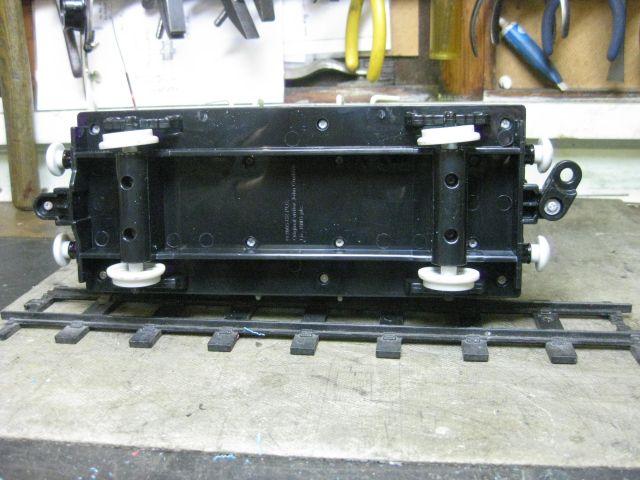

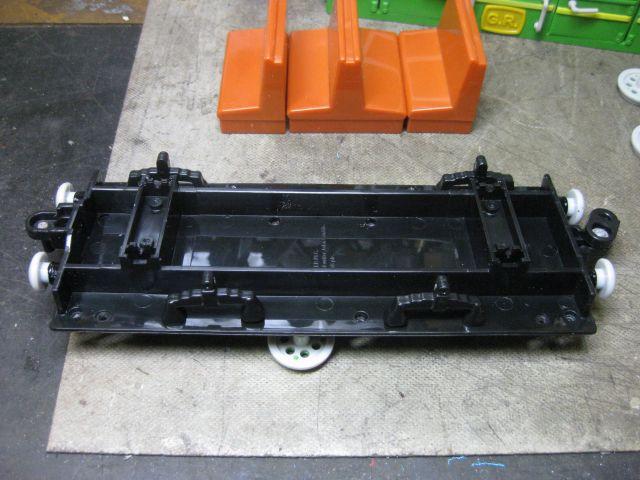

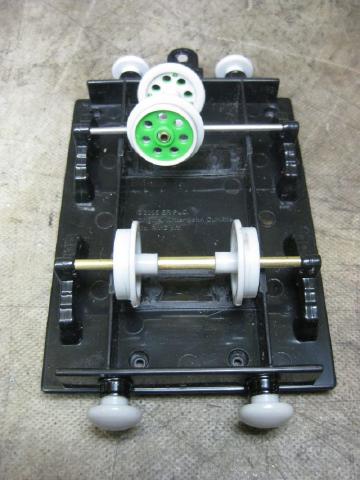

Photo 3 & 4. The carriage had a rather long wheel base.




Photo 5. It was decided to try and use the existing axle boxes and reduce the wheel base.

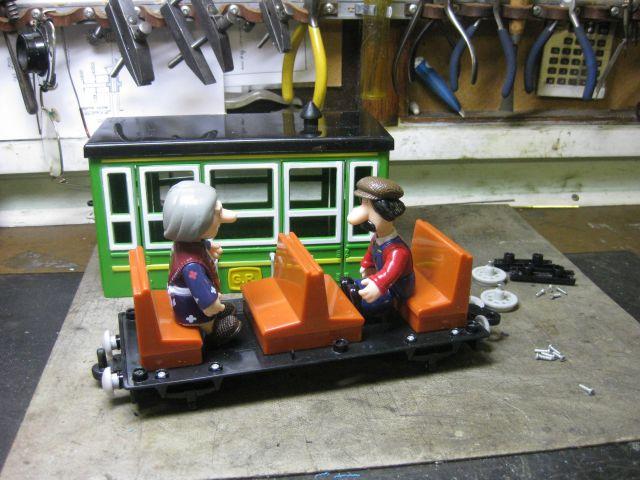

Photo 6. The model people were tried on the seats.

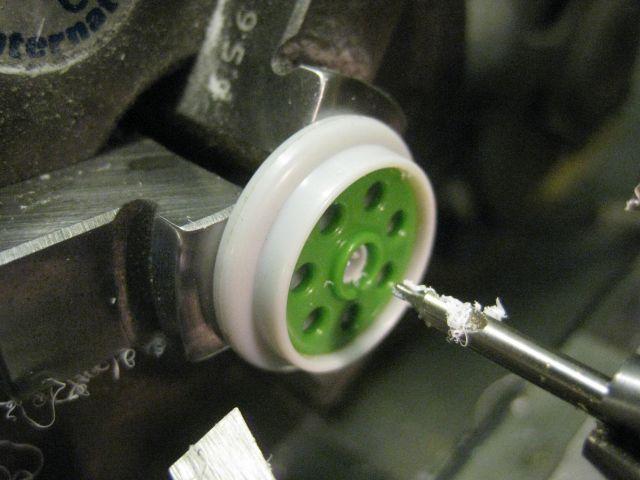

Photo 7. It was decided to try and use the original wheels so the stub axles on the wheels were drilled out and the tread and flange of the wheels turned.

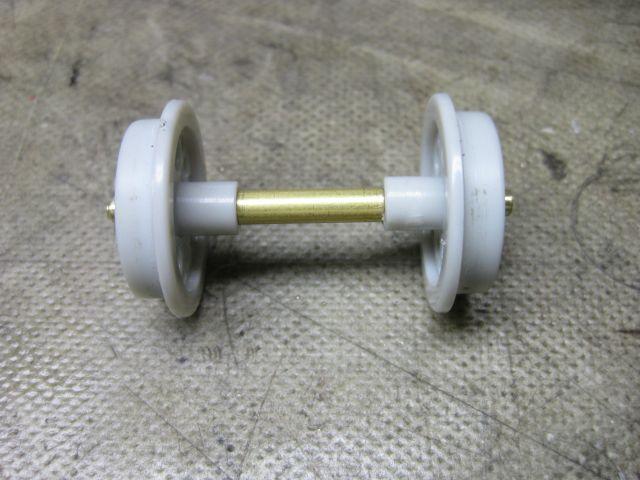

Photo 8. The wheels were mounted to gauge on some K&S brass tubing.



Photo 9. The axle boxes were drilled part the way through and non rotating steel axles fitted. The mounted wheels run on this axle with K&S brass tube spacers keeping them central.



Photo 10. Guards van chassis on track.



Photo 11 &12. There didn’t look as if there was enough room on the locomotive to fit both motor and batteries so the batteries will be carried on the coach.




Photo 13. The modified coach and guards van.



The modification of the Greendale Rocket locomotive next!

Regards Tony.

[Tony Bird]

Hi,

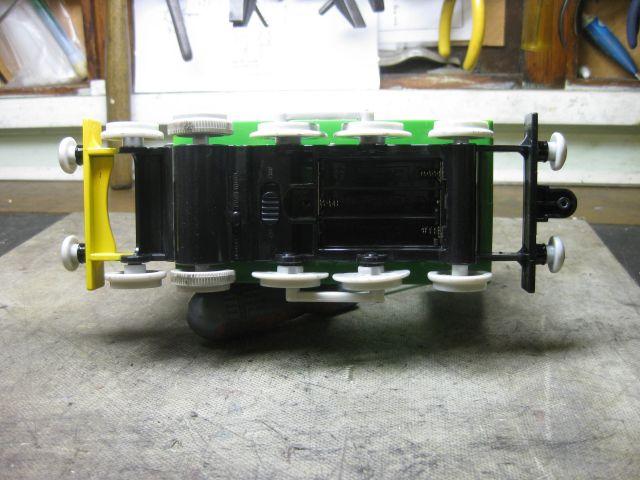

I believe that there are several versions of the Greendale Rocket locomotive, push along, pull back and let go and the one I bought which has an electric motor and sound system. Unfortunately this motor is mounted transversely and drives through one axle that is fitted with wheels that have traction tyres so it really cannot be used. Photo 1.



Unlike the rolling stock which was totally held together using screws the Greendale Rocket locomotive is partially glued together. Unfortunately some of the glued parts cove some screws which have to be removed before the body will come apart. These screws weren’t found until some of the parts had already been sawn through. Also none of the original wheels were suitable so were replaced by some GRP ‘Binnie’ wheels.

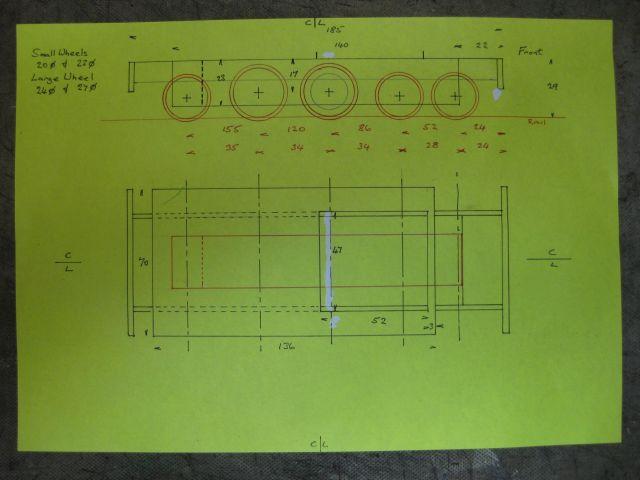

Before starting to pull the model apart some drawings of the wheel positions were made. Photos 2 & 3.




The first job was to prise off the top of the cab that was glued on. Photo 4.

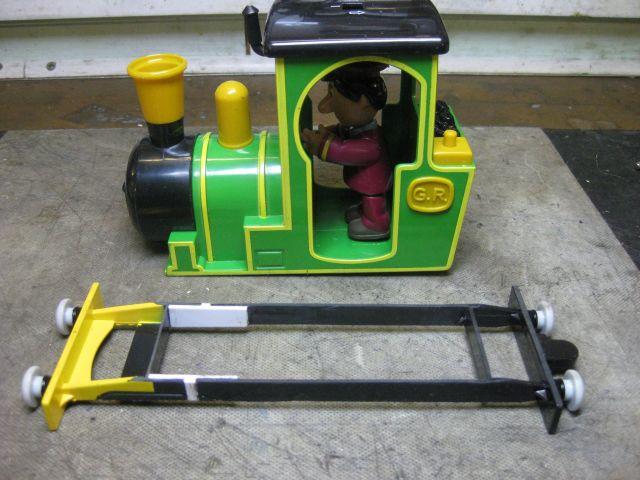

The body was sawn off the chassis. Photo 5.

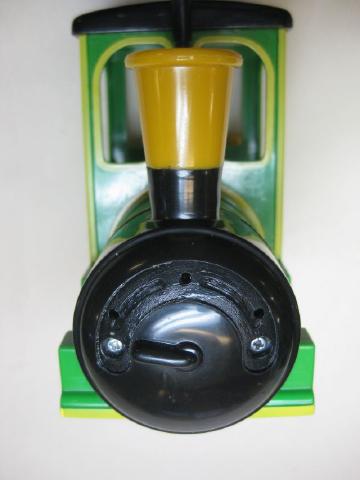

The two parts of the body which need to be removed to access hidden screws which mean that you don’t require a saw! Photos 6 & 7.

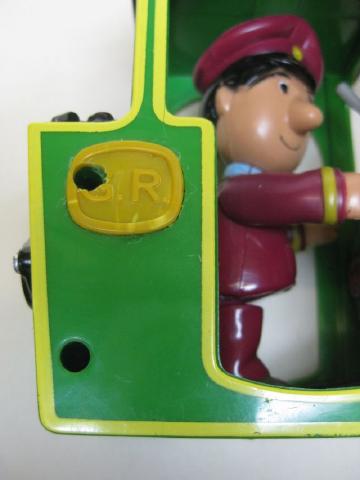

All parts not needed cut away from the body and chassis. Photo 8.

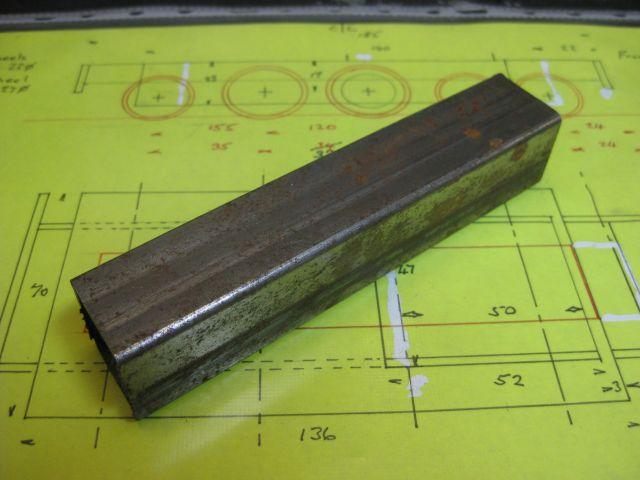

The new chassis is made from 25 mm (1”) steel square section tube. Photos 9 &10.




Fitting the bearings in the chassis from the inside outwards. Photo 11.

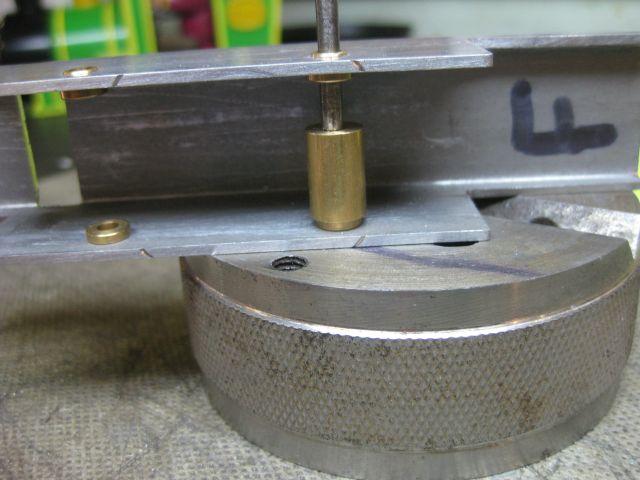

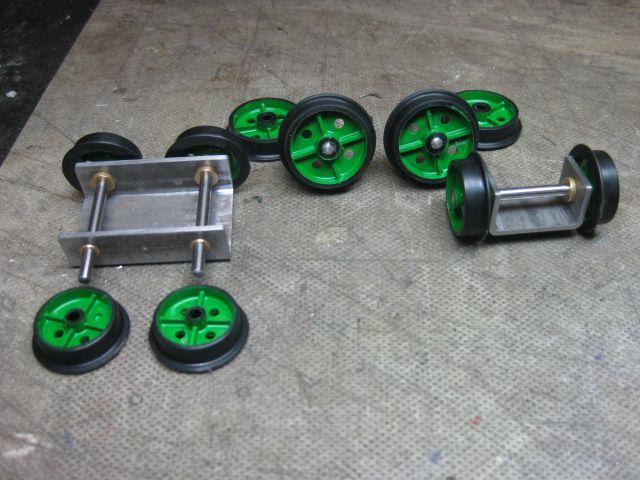

The frames for the pony truck and trailing axle were made from cut down square section tube. Photo 12.

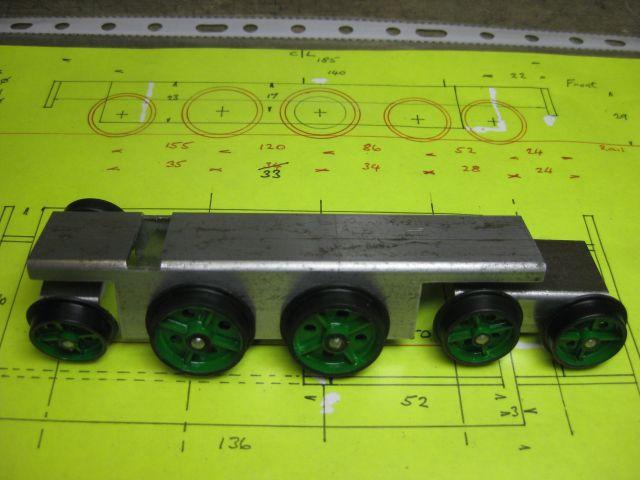

Mock up of chassis and wheels. Photo 13.

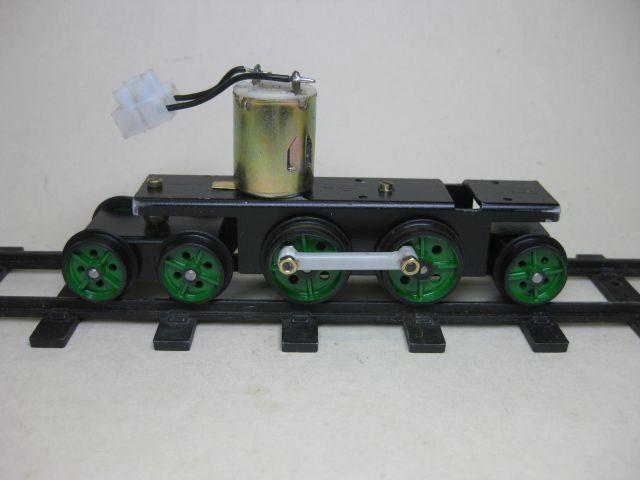

Electric motor and its drive mounted in the chassis. Photo 14.

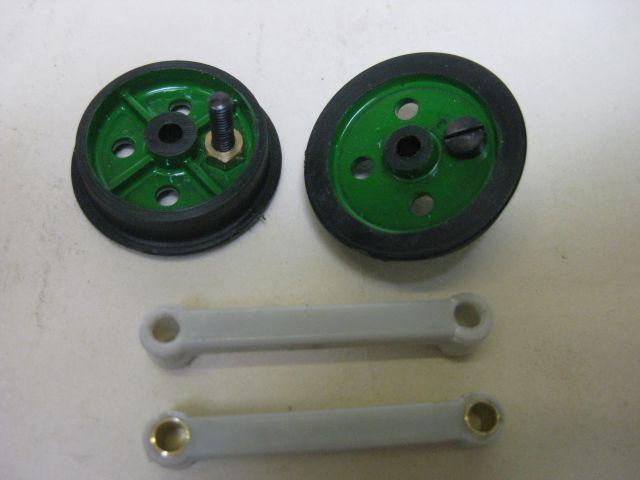

The original connecting rods were used being sleeved with K&S brass tubing and 6BA screws were used for the crank pins. Photo 15.

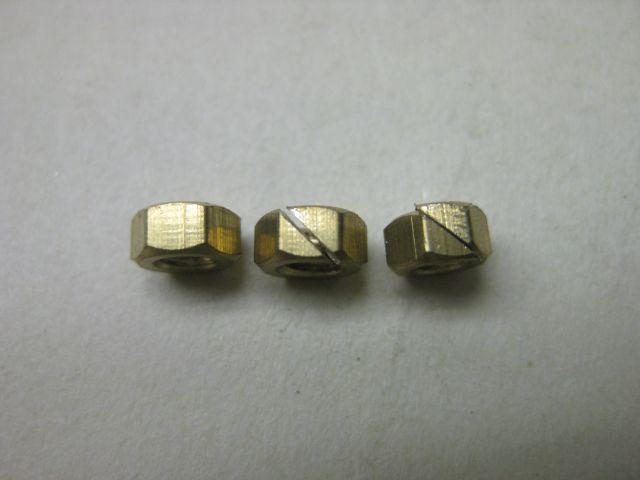

The coupling rod nuts were made self locking. Photo 16.

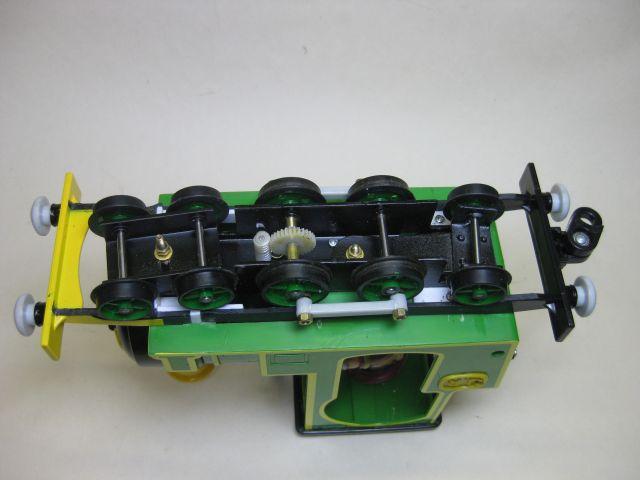

The completed chassis. Photos 17.



Model finished. Photos 18 & 19.




Test run. Photo 20.
