Just time for a quicky....

Post by Peter Butler » Tue Apr 08, 2014 11:33 pm

Got the bit between my teeth now....
Having built the Guards Van, the Cattle Wagon and the Parcels Van and then put them together as a working train, I can see omissions in my expanding fleet.
So, today it was time to put that right and begin yet another item of stock. No, that's not quite true! I began TWO items of stock....
On the workbench can be seen another covered van, this time from the GVT but with alterations to suit my other stock.

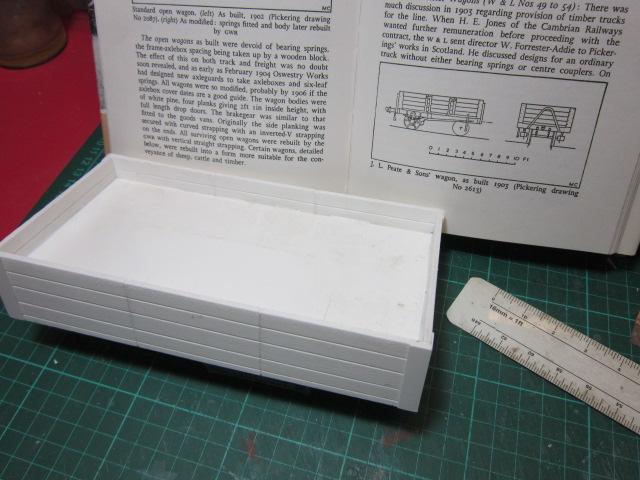

Also, a four plank open wagon base on the W&L (again)

To permanently fit a load of either coal or gravel I have set inside a raised platform to lessen the quantity of material. underneath this, at floor level, is a lead sheet weight for stability.
I have scribed the planks and wood grain effects and added corner strapping. Just the doors, end strapping, hinges etc. to add before painting. As yet I have no axleguards to fit these wagons but that can wait.

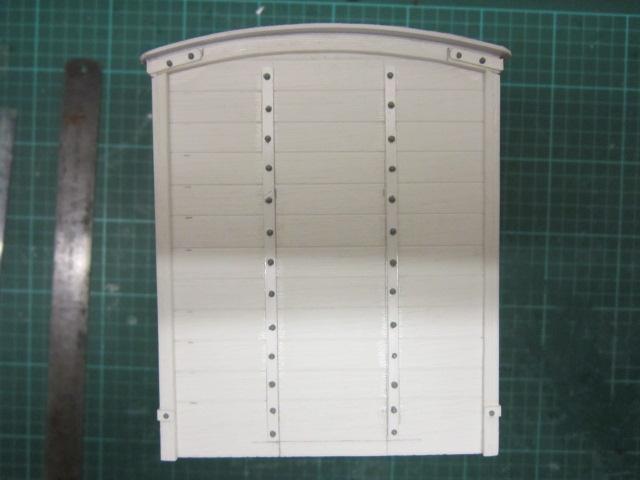

The covered van is more advanced with the doors, bracing and framework fitted so far. Inside can be seen the strengthening pieces I use to make the structure strong. This van also has lead sheet weights stuck inside at floor level.


User avatar
GTB
Driver
Driver
Posts: 1705
Joined: Sat Mar 05, 2011 2:46 pm
Location: Australia

Re: Just time for a quicky....

Post by GTB » Wed Apr 09, 2014 5:34 am

Peter Butler:99125 wrote:Got the bit between my teeth now....
You are getting perilously close to the batch building precipice. 8)

Be a devil and try building a couple more open wagons while you are on a roll.....

Graeme

kandnwlr

Post by kandnwlr » Wed Apr 09, 2014 6:37 am

Only a matter of time before you introduce a three shift system to produce around the clock :shock: I´m concerned about the UK´s rapidly diminishing stock of plasticard :?

User avatar
Peter Butler
Driver
Driver
Posts: 5711
Joined: Sun Sep 09, 2012 10:33 pm
Location: West Wales

Post by Peter Butler » Wed Apr 09, 2014 10:36 am

I do have a reasonable amount of Plasticard in stock having purchased a number of extra large sheets recently. However, when I re-order, it might just create a waiting list for those following, so if you need some yourself......order now!!!!

User avatar
Peter Butler
Driver
Driver
Posts: 5711
Joined: Sun Sep 09, 2012 10:33 pm
Location: West Wales

Post by Peter Butler » Thu Apr 10, 2014 10:55 pm

Time is slipping by on this one as life tends to create diversions.

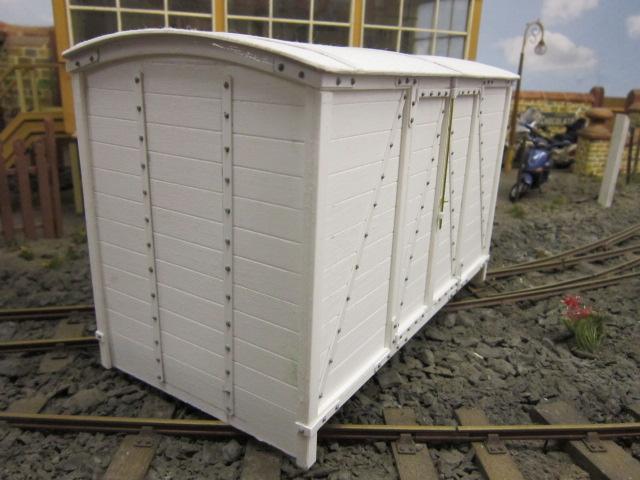

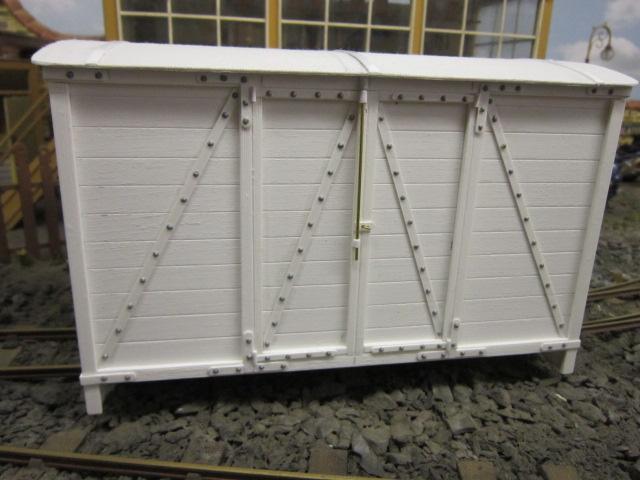

However, I have made good progess on the covered van having fitted the roof and added a canvas effect cover. Also all of the bolt heads have been attached and it is ready for painting tomorrow....

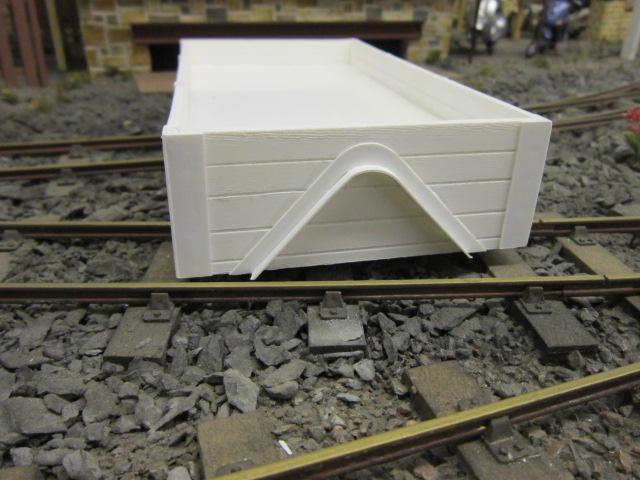

The open wagon is lagging behind but the strapping is almost finished and the bolt heads (far fewer than the van) shouldn't take too long.

jim@NAL
Driver
Driver
Posts: 1142
Joined: Sun Sep 23, 2012 11:01 am
Location: haverhill suffok

Post by jim@NAL » Sun Apr 13, 2014 4:42 pm

very very impressive
