Wifi control with ESP8266
-
drewzero1
- Administrator
- Posts: 835
- Joined: Fri Apr 21, 2023 4:35 pm
- Location: WI, US
- Contact:
Re: Wifi control with ESP8266

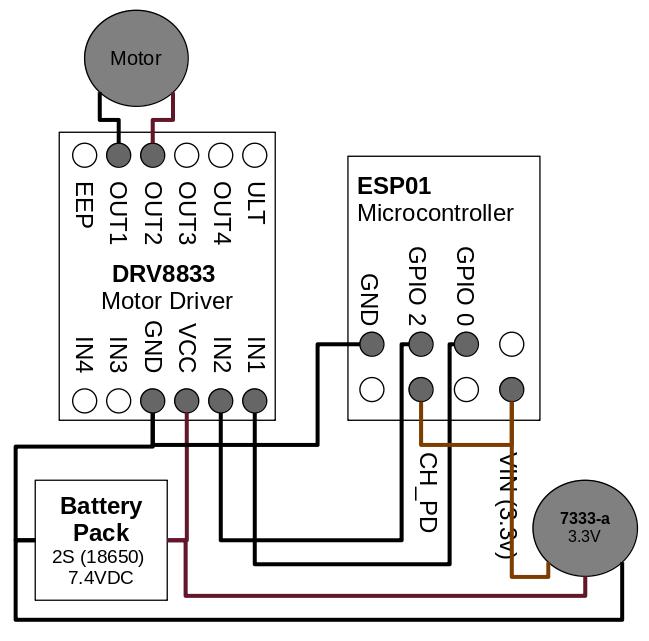

Updated wiring connection diagram for the DRV8833 and 7333-a:
Still need to add a power switch and decoupling capacitor. When I get those wired in I'll add them to the diagram.
Still need to add a power switch and decoupling capacitor. When I get those wired in I'll add them to the diagram.
