Lady Anne Kit Build

[Jackf88]

Hi all,

I'm Jack and I'm pretty new to live steam but am a steam crew volunteer and am an engineer by trade so I thought I'd take the plunge on a kit build lady Anne!

I'm mid way through(ISH) my first live steam build having assembled the chassis and fitted all boiler parts necessary for running (body to follow) I'm currently waiting for a chuffer and a shiny gold on black name plate 'Scafell Pike'

On first two runs the loco has a pronounced side to side motion of the rear axle, can't decide if this is down to poor adjustment of the con rods or valve timing!? Any help is greatly appreciated!

Pics to follow

[Peter Butler]

Hi Jack and welcome to the Forum. Although I am not a live steam person myself, and therefore can't give any advice to you about your build, I am keen to see the progress and final result of your build.
Please let us have pictures and any details which might share your experience.

[TonyW]

... the loco has a pronounced side to side motion of the rear axle ...

Probably the cranks are not fully located on the axle ends. Remove the rods then on all three axles:
- Remove the crank fixing screws
- Using soft jaws (e.g. wood) in a vice squeeze the cranks fully home on to the axles
- Re-fit crank fixing screws and tighten fully by using two screwdrivers, one on each end of the axle
Be careful to avoid bending the fixed crank pins on the rear axle!

If that doesn't sort it out then Roundhouse can supply suitable washers that fit between the cranks and the axle bearings.

[Jackf88]

... the loco has a pronounced side to side motion of the rear axle ...

Probably the cranks are not fully located on the axle ends. Remove the rods then on all three axles:
- Remove the crank fixing screws
- Using soft jaws (e.g. wood) in a vice squeeze the cranks fully home on to the axles
- Re-fit crank fixing screws and tighten fully by using two screwdrivers, one on each end of the axle
Be careful to avoid bending the fixed crank pins on the rear axle!

If that doesn't sort it out then Roundhouse can supply suitable washers that fit between the cranks and the axle bearings.

Great, thank you Tony! I have to admit I wasn't convinced the G clamp I used was doing an amazing job when I fitted them. Will give it a try asap!

[Jackf88]

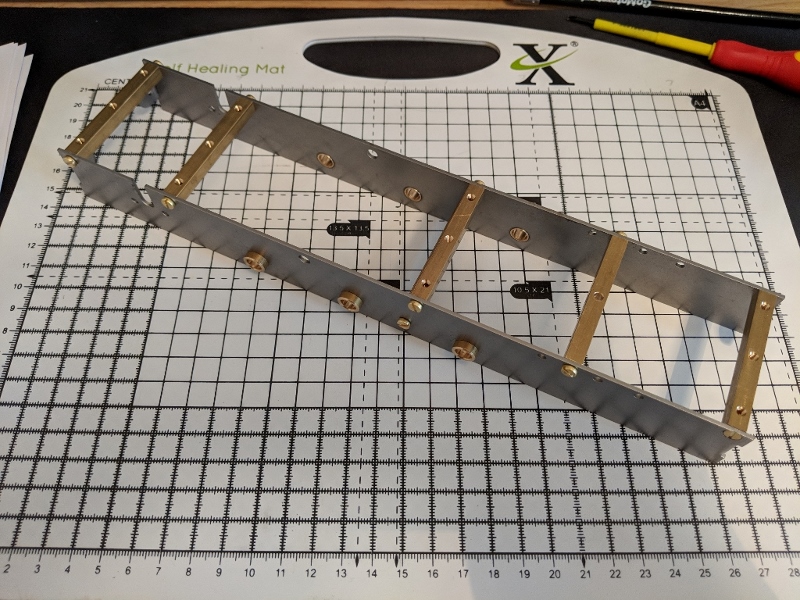

Photo's as promised

Obviously need to do some more painting but will probably wait until I get the body kit and have a session!

Also I can't seem to get them to appear in order so apologies for multi post

[Jackf88]

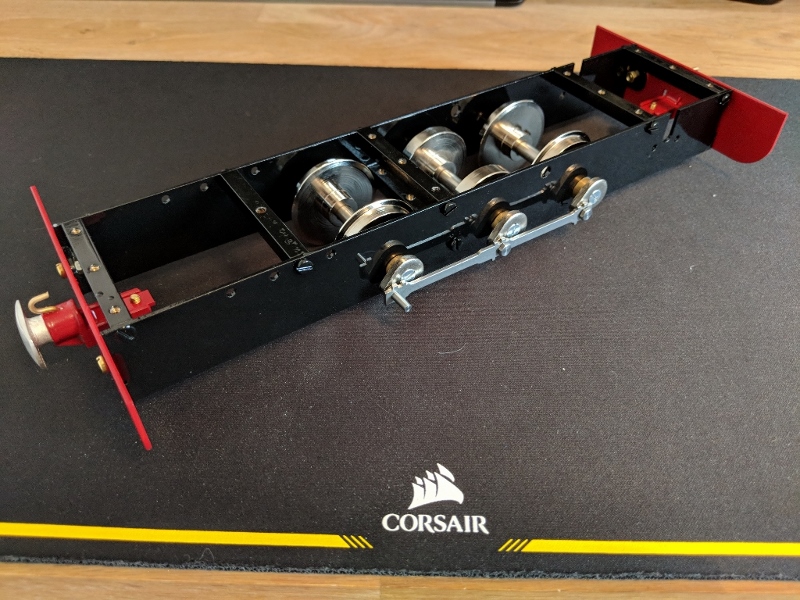

IMG_20180428_135544 (1024x768) (800x600).jpg (325.88 KiB) Viewed 10424 times

[Jackf88]

IMG_20180506_111518 (1024x768) (800x600).jpg (341.84 KiB) Viewed 10421 times

[Jackf88]

IMG_20180531_202351 (800x600).jpg (249.19 KiB) Viewed 10421 times

[bazzer42]

That is looking nice, afraid I can't help with any advice on construction but do have a soft spot for Lady Anne. The body is just right (not that yours is fitted yet!). Any decision on colour?

[FWLR]

I am really going to after try and get some money together and again try and scratch build a Lady Anne….it’s my next and last live steamer…..

Welcome Jack, hope we can see more soon of your build, it’s looking brilliant unto now…..

[Jackf88]

That is looking nice, afraid I can't help with any advice on construction but do have a soft spot for Lady Anne. The body is just right (not that yours is fitted yet!). Any decision on colour?

Thank mate, colour wise I was fairly set on brunswick green, but having recently seen a couple done up as BR Black so now I'm not sure?!

[tom_tom_go]

That's the most gloss frame I have ever seen, it has a mirror finish!

What did you use, looks like it will be very durable.

[Keith S]

How did you get on pressing the cranks down a bit more firmly on the axles? Looking at your pictures there does seem to be quite a bit of space there. After all, 'tis only the wheels on the inside or the cranks on the outside that stop lateral movements of the axles, and the beating of the reciprocating motion on the turning axle does make it want to "walk" back and forth: you see this force in action on 0-4-0 locomotives "waddling" as they make their way along.

[Jackf88]

That's the most gloss frame I have ever seen, it has a mirror finish!

What did you use, looks like it will be very durable.

Haha it was a cellulose gloss black from the local DIY place! Don't look too close shinier than I'd like to be honest but it's gone on nice and thick so hopefully hard wearing! Took forever to cure!

[Jackf88]

How did you get on pressing the cranks down a bit more firmly on the axles? Looking at your pictures there does seem to be quite a bit of space there. After all, 'tis only the wheels on the inside or the cranks on the outside that stop lateral movements of the axles, and the beating of the reciprocating motion on the turning axle does make it want to "walk" back and forth: you see this force in action on 0-4-0 locomotives "waddling" as they make their way along.

Haven't had a chance yet, but as soon as I've down it and had a steam up will make sure I post! Ran really nicely otherwise, nice steam beat it was possible to stop it waddling by putting a little side pressure win the wheels but you could tell by the sound it was still not quite right

[IanC]

Hi Jack.

I have a Lady Anne. Mine was factory built. I love it. Mine happens to be in Maroon, but as it's a popular colour I've seen lots in different colours. It seems to suit them all! In all honesty I'd love another, but that would give me a dilema. I like black too so would it be black, stick with maroon for a 'fleet colour' or go with something different like Brunswick Green? While on the subject of colour, if you look at full sized locomotives of all gauges, I've never come across one where the back of the buffer beams are painted red. However it's your locomotive, just go with what you think is good. Because you've put it together you'll know how to take it apart if you want to make mods later, or change the colour.

I can't offer any build tips, but will follow with interest. I might get a kit and have a go myself.

Ian

[TonyW]

... I've never come across one where the back of the buffer beams are painted red ...

Amen to that! Add unpainted shiny wheels to the list too.

[Jackf88]

... I've never come across one where the back of the buffer beams are painted red ...

Amen to that! Add unpainted shiny wheels to the list too.

Haha yeah bufferbeams was a school boy error, will be painting backs black when I next do some paint

I'd never really thought of the wheels but you're right, probably paint black at the next opportunity too!

[IanC]

... I've never come across one where the back of the buffer beams are painted red ...

Amen to that! Add unpainted shiny wheels to the list too.

Haha yeah bufferbeams was a school boy error, will be painting backs black when I next do some paint

I'd never really thought of the wheels but you're right, probably paint black at the next opportunity too!

yes, I missed off the shiny wheels too. Mine are black. I'm gradually losing most of the brass handrails, boiler bands etc. A painted finish looks better IMHO.

Ian

[tom_tom_go]

Could you bring yourself to join the mucky crew club?
